Velocity-guided CellRank Analysis

This notebook demonstrates a velocity-informed CellRank workflow on a pancreas RNA-velocity dataset. It covers velocity preprocessing, terminal-state prediction, fate probabilities, branch-aware pseudotime visualization, and marker-gene dynamics.

Load data

We use the pancreas developmental dataset distributed with scvelo. It contains spliced and unspliced layers required for RNA velocity analysis.

import warnings
warnings.filterwarnings("ignore", category=FutureWarning)

import omicverse as ov
import scanpy as sc
import scvelo as scv
import cellrank as cr
import numpy as np
import matplotlib.pyplot as plt

ov.plot_set(font_path='Arial')

%load_ext autoreload
%autoreload 2

🔬 Starting plot initialization...
Using already downloaded Arial font from: /var/folders/rv/3jnfbs0d6r7d0c5bfj7ft5k00000gn/T/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
🚫 PyTorch not available - GPU detection skipped

   ____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

🔖 Version: 2.1.3rc1   📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.

adata = scv.datasets.pancreas()
adata

AnnData object with n_obs × n_vars = 3696 × 27998
    obs: 'clusters_coarse', 'clusters', 'S_score', 'G2M_score'
    var: 'highly_variable_genes'
    uns: 'clusters_coarse_colors', 'clusters_colors', 'day_colors', 'neighbors', 'pca'
    obsm: 'X_pca', 'X_umap'
    layers: 'spliced', 'unspliced'
    obsp: 'distances', 'connectivities'

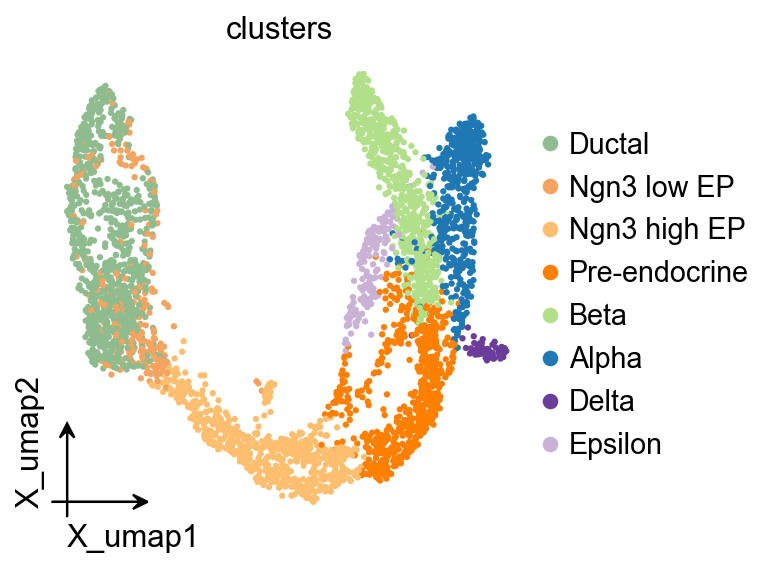

ov.pl.embedding(
    adata,
    basis='X_umap',
    color='clusters',
    frameon='small',
)

Estimate RNA velocity

We keep the preprocessing intentionally compact: normalize shared counts, compute PCA/neighbors, calculate moments, estimate deterministic RNA velocity, and build the velocity graph. We also derive a development-oriented pseudotime for the downstream branch and marker-program visualizations.

scv.pp.filter_and_normalize(adata, min_shared_counts=20)
sc.pp.pca(adata)
sc.pp.neighbors(adata, n_neighbors=30, n_pcs=30)
scv.pp.moments(adata, n_pcs=None, n_neighbors=None)
scv.tl.velocity(adata, mode='deterministic')
scv.tl.velocity_graph(adata, n_jobs=1)
scv.tl.velocity_pseudotime(adata)

root_mask = adata.obs['clusters'].astype(str).eq('Ductal')
if not root_mask.any():
    root_mask = adata.obs['clusters'].astype(str).eq('Ngn3 low EP')
root_cells = np.flatnonzero(root_mask.to_numpy())
root_center = np.asarray(adata.obsm['X_pca'][root_cells]).mean(axis=0)
root_index = int(
    root_cells[
        np.argmin(
            np.linalg.norm(adata.obsm['X_pca'][root_cells] - root_center, axis=1)
        )
    ]
)
adata.uns['iroot'] = root_index
sc.tl.diffmap(adata)
sc.tl.dpt(adata, n_dcs=10)
adata.obs['development_pseudotime'] = adata.obs['dpt_pseudotime']

Filtered out 20801 genes that are detected 20 counts (shared).
Normalized count data: X, spliced, unspliced.
computing moments based on connectivities
finished (0:00:01) --> added
    'Ms' and 'Mu', moments of un/spliced abundances (adata.layers)
computing velocities
finished (0:00:00) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)
computing velocity graph (using 1/12 cores)
finished (0:00:05) --> added
    'velocity_graph', sparse matrix with cosine correlations (adata.uns)
computing terminal states
WARNING: Uncertain or fuzzy root cell identification. Please verify.
    identified 1 region of root cells and 1 region of end points .
    finished (0:00:00) --> added
    'root_cells', root cells of Markov diffusion process (adata.obs)
    'end_points', end points of Markov diffusion process (adata.obs)

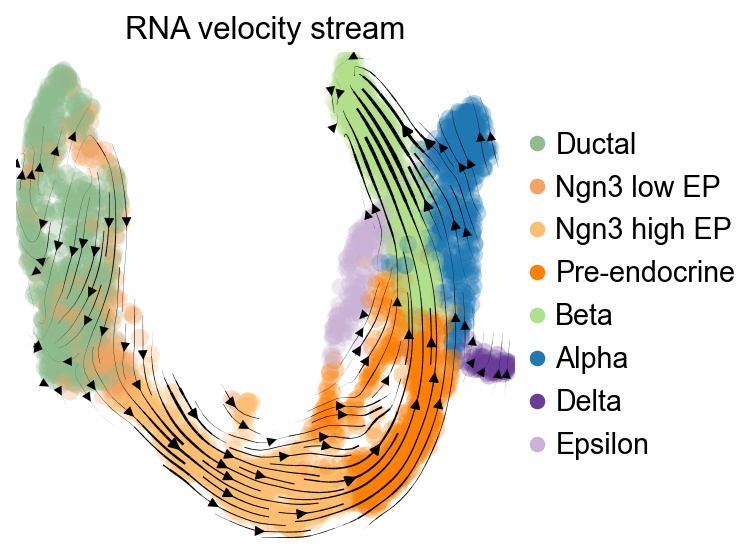

scv.pl.velocity_embedding_stream(
    adata,
    basis='umap',
    color='clusters',
    legend_loc='right',
    title='RNA velocity stream',
)

computing velocity embedding
    finished (0:00:00) --> added
    'velocity_umap', embedded velocity vectors (adata.obsm)

Build CellRank kernels

A common setup is to blend velocity-based transitions with neighborhood connectivity so the downstream fate analysis uses both local graph structure and RNA velocity direction.

vk = cr.kernels.VelocityKernel(adata).compute_transition_matrix()
ck = cr.kernels.ConnectivityKernel(adata).compute_transition_matrix()
kernel = 0.8 * vk + 0.2 * ck
kernel

(0.8 * VelocityKernel[n=3696, model='deterministic', similarity='correlation', softmax_scale=12.543] + 0.2 * ConnectivityKernel[n=3696, dnorm=True, key='connectivities'])

Visualize the CellRank velocity kernel

After constructing the CellRank velocity kernel, we project its transition directions onto UMAP to inspect the directionality used by the fate analysis.

vk.plot_projection(
    basis='umap',
    color='clusters',
    legend_loc='right',

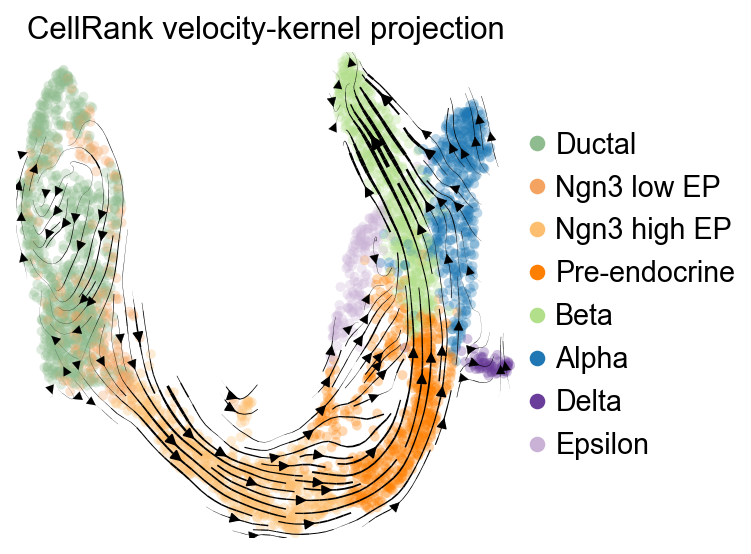

    title='CellRank velocity-kernel projection',
    stream=True,
    size=80,
)

OV trajectory graph overlay

The development-oriented pseudotime can be used as a PAGA prior, giving a graph overlay that complements the velocity stream and CellRank kernel projection.

ov.utils.cal_paga(
    adata,
    use_time_prior='development_pseudotime',
    vkey='velocity',
    groups='clusters',
)
ov.pl.trajectory(
    adata,
    method='paga',
    basis='X_umap',
    groups='clusters',
    color='clusters',

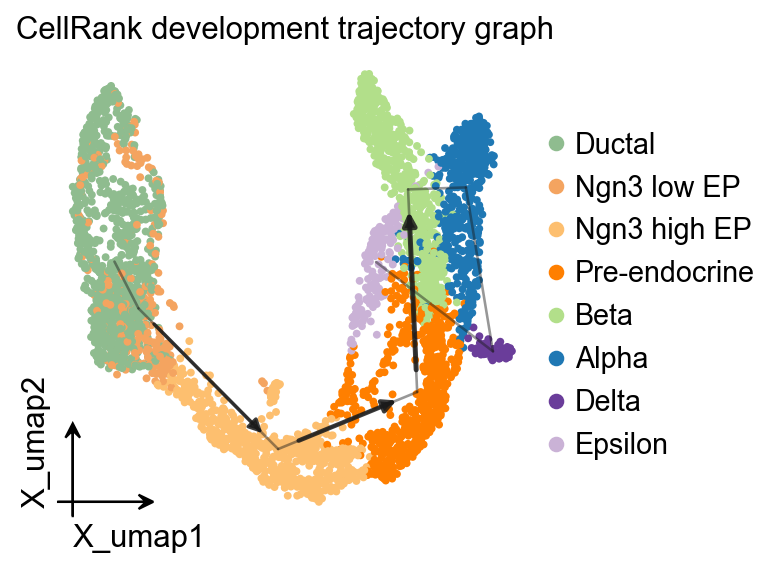

    title='CellRank development trajectory graph',
)
plt.show()

running PAGA using priors: ['development_pseudotime']
finished
added
    'paga/connectivities', connectivities adjacency (adata.uns)
    'paga/connectivities_tree', connectivities subtree (adata.uns)
    'paga/transitions_confidence', velocity transitions (adata.uns)

OV trajectory overlay

ov.pl.trajectory_overlay adds the PAGA backbone to an existing UMAP embedding.

fig, ax = plt.subplots(figsize=(4, 4))
ov.pl.embedding(
    adata,
    basis='X_umap',
    color='clusters',
    ax=ax,
    show=False,
    size=50,
)
ov.pl.trajectory_overlay(
    adata,
    ax=ax,
    method='paga',
    basis='X_umap',
    groups='clusters',
)

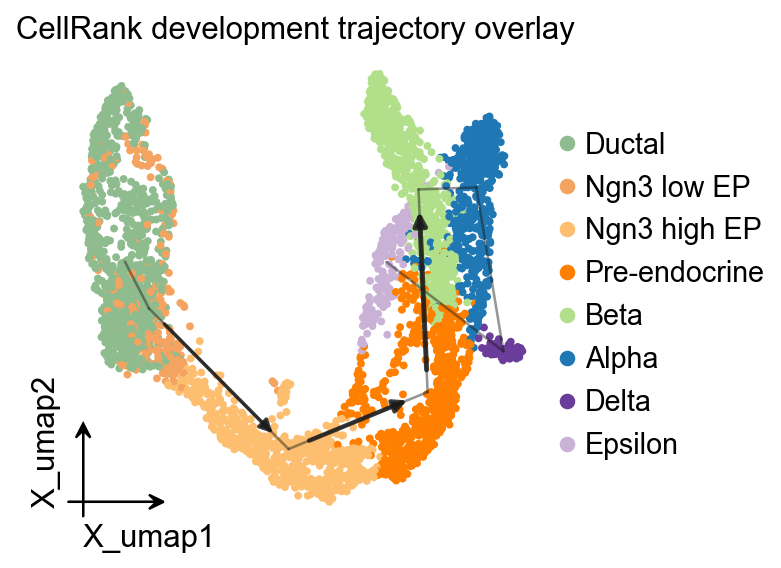

ax.set_title('CellRank development trajectory overlay')
plt.show()

g = cr.estimators.GPCCA(kernel)
g.compute_macrostates(n_states=6, cluster_key='clusters')
list(g.macrostates.cat.categories)

WARNING: Unable to import `petsc4py` or `slepc4py`. Using `method='brandts'`
WARNING: For `method='brandts'`, dense matrix is required. Densifying

['Epsilon', 'Alpha', 'Ductal_1', 'Ductal_2', 'Ngn3 high EP', 'Beta']

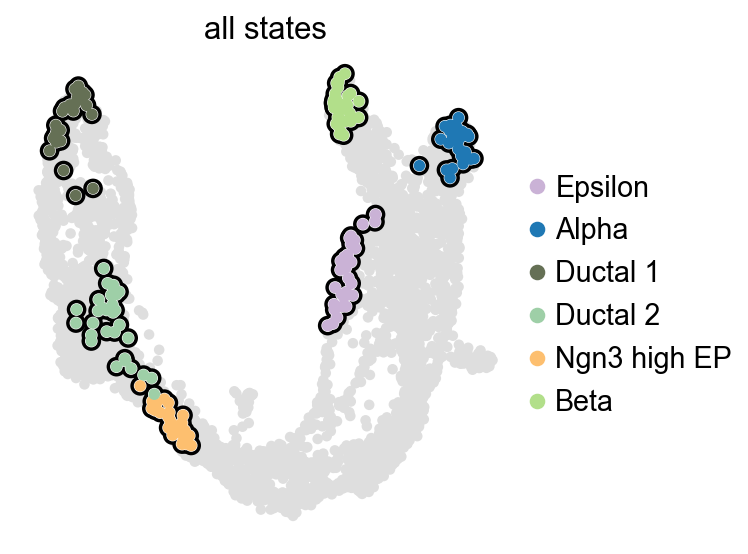

g.plot_macrostates(which='all', legend_loc='right', size=90)

Identify terminal states and fate probabilities

For this pancreas example, CellRank can automatically propose terminal states from the fitted macrostates. We then compute lineage probabilities for every cell.

g.predict_terminal_states(n_states=4)
list(g.terminal_states.cat.categories)

['Epsilon', 'Alpha', 'Beta']

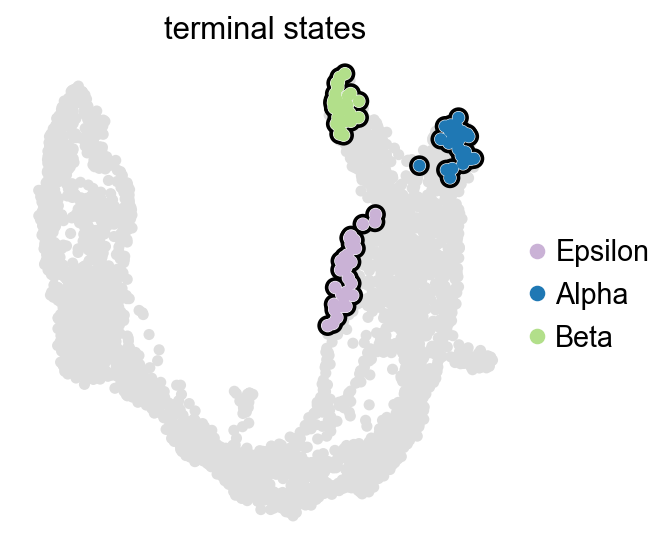

g.plot_macrostates(which='terminal', legend_loc='right', size=100)

g.compute_fate_probabilities(solver='direct', use_petsc=False)

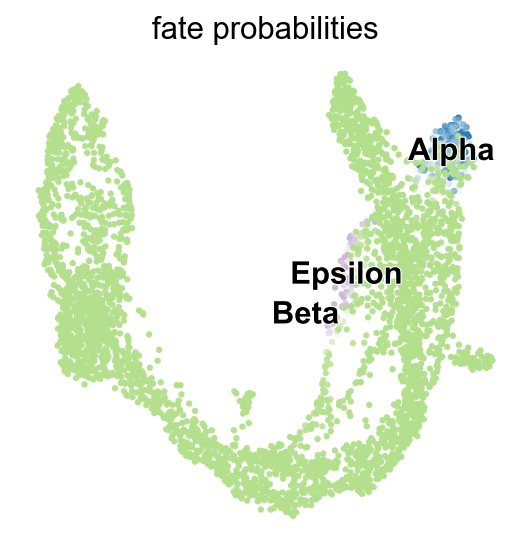

g.plot_fate_probabilities(same_plot=True)

adata.obs.groupby('clusters', observed=True)[
    ['velocity_pseudotime', 'development_pseudotime']
].median().sort_values('development_pseudotime')

               velocity_pseudotime  development_pseudotime
clusters
Ngn3 low EP               0.911242                0.039220
Ductal                    0.908973                0.043246
Ngn3 high EP              0.937826                0.347985
Pre-endocrine             0.944476                0.634166
Beta                      0.950648                0.774505
Epsilon                   0.633200                0.796823
Alpha                     0.911853                0.819963
Delta                     0.898328                0.845001

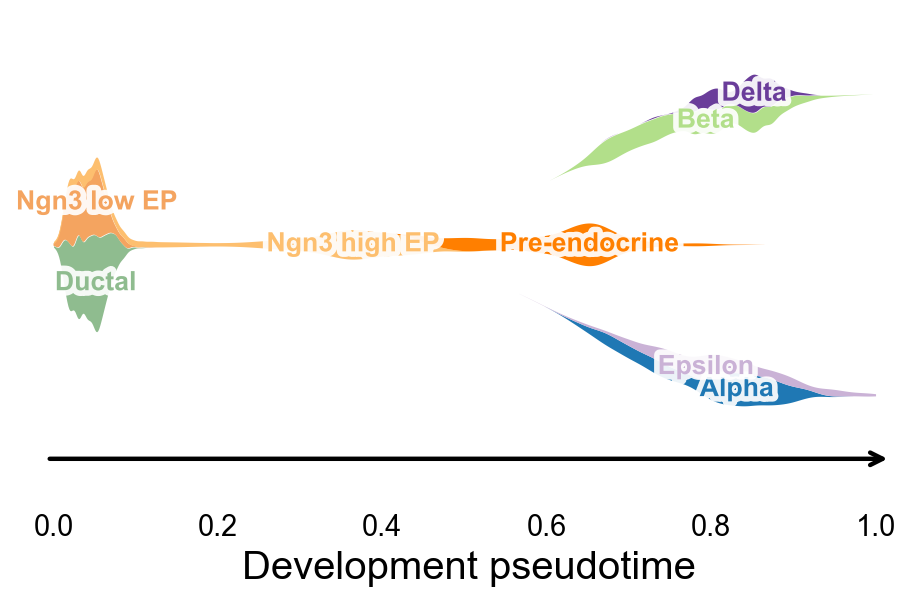

Branch-aware stream plot along development pseudotime

ov.pl.branch_streamplot can use the root-oriented development pseudotime together with the pancreas cluster labels. The shared endocrine progenitor states form the trunk, while the terminal endocrine fates bend into branch ribbons, giving a compact bridge between the UMAP velocity field and the CellRank fate probabilities.

fig, ax = ov.pl.branch_streamplot(
    adata,
    group_key='clusters',
    pseudotime_key='development_pseudotime',
    trunk_groups=['Ductal', 'Ngn3 low EP', 'Ngn3 high EP', 'Pre-endocrine'],
    branch_center=0.62,
    figsize=(6, 4),
    xlabel='Development pseudotime',
    show=False,
)
plt.show()

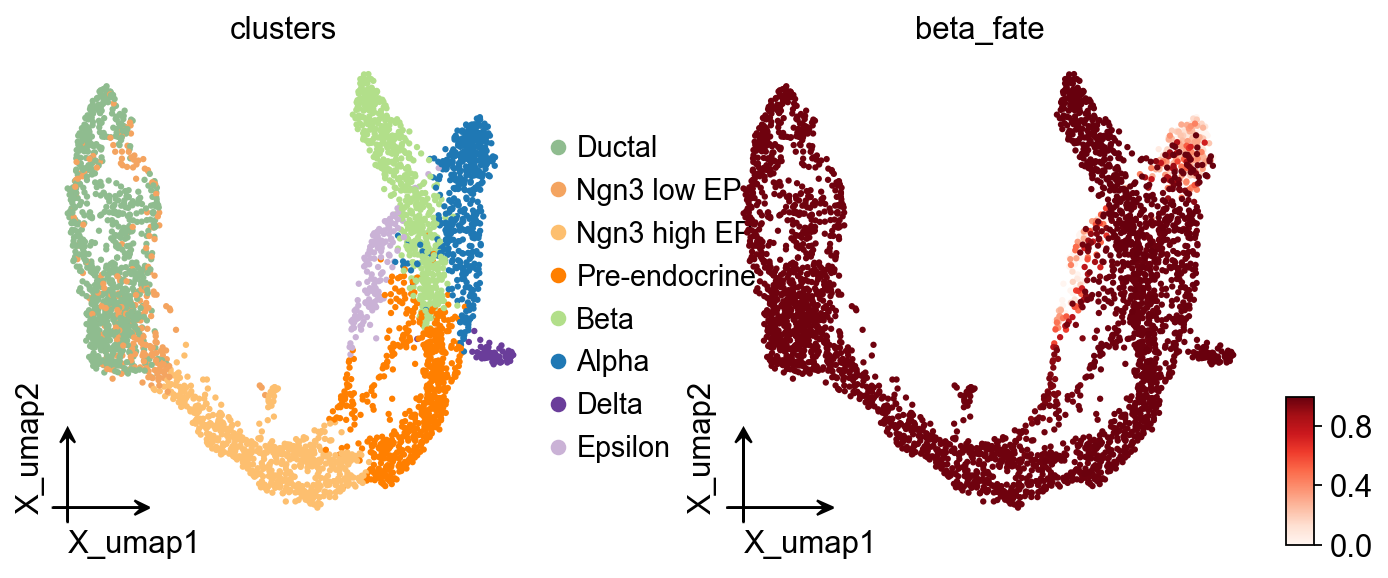

adata.obs['beta_fate'] = np.asarray(g.fate_probabilities['Beta']).ravel()
ov.pl.embedding(
    adata,
    basis='X_umap',
    color=['clusters', 'beta_fate'],
    cmap='Reds',
    frameon='small',
)

Inspect lineage-specific gene trends

ov.single.dynamic_features fits GAM trends along development_pseudotime, and ov.pl.dynamic_trends shows two complementary views here. The first is a global Beta-enriched view with raw points colored by clusters. The second is a branch-aware Alpha/Beta comparison.

safe_uns = {k: v for k, v in adata.uns.items() if k.endswith('_colors') or k in {'neighbors', 'umap'}}
uns_backup = adata.uns
adata.uns = safe_uns
adata_dyn = adata.copy()
adata.uns = uns_backup

adata_beta = adata_dyn[adata_dyn.obs['beta_fate'] > 0.15].copy()

beta_dyn = ov.single.dynamic_features(
    adata_beta,
    genes=['Pdx1', 'Ins1', 'Ins2', 'Sox9'],
    pseudotime='development_pseudotime',
    layer='Ms',
    distribution='normal',
    link='identity',
    n_splines=8,
    store_raw=True,
    raw_obs_keys=['clusters'],
)

🔍 Dynamic feature analysis:
   Views: 1 | Features: 4
   Pseudotime: development_pseudotime
   Stored raw obs keys: ['clusters']
   Layer: Ms
   GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
   ✓ Successful fits: 4/4
   ✓ Fitted rows: 800
   ✓ Raw observations stored: 14380

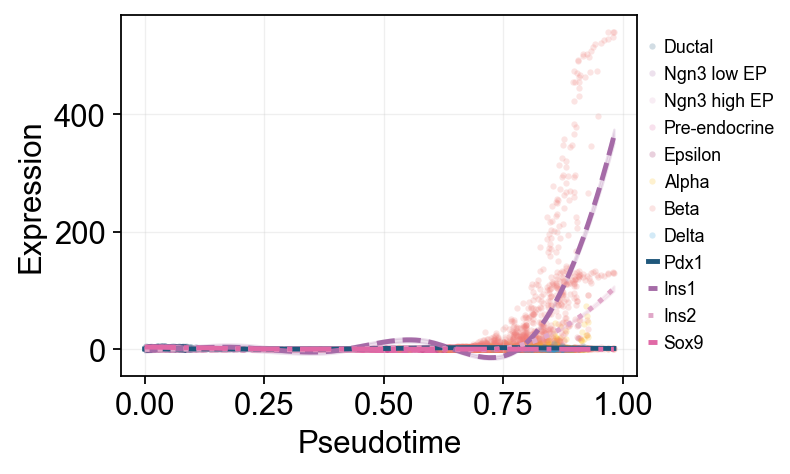

ov.pl.dynamic_trends(
    beta_dyn,
    genes=['Pdx1', 'Ins1', 'Ins2', 'Sox9'],
    compare_features=True,
    add_point=True,
    point_color_by='clusters',
    line_style_by='features',
    figsize=(6.2, 3.2),
    linewidth=2.2,
    legend_loc='right margin',
    legend_fontsize=8,
)
plt.show()

🔍 Dynamic trend plotting:
   Features: 4 | Groups: 1
   compare_features=True | compare_groups=False
✅ Dynamic trend plotting completed!

branch_clusters = [g for g in ['Alpha', 'Beta'] if g in set(adata_dyn.obs['clusters'].astype(str))]
split_mask = adata_dyn.obs['clusters'].astype(str).isin(['Ngn3 high EP', 'Pre-endocrine'])

cellrank_branch_dyn = None
cellrank_split_time = None

if len(branch_clusters) >= 2:
    cellrank_branch_dyn = ov.single.dynamic_features(
        adata_dyn,
        genes=['Gcg', 'Ins1', 'Ins2', 'Pdx1'],
        pseudotime='development_pseudotime',
        layer='Ms',
        groupby='clusters',
        groups=branch_clusters,
        distribution='normal',
        link='identity',
        n_splines=8,
        store_raw=True,
    )
    cellrank_split_time = float(np.nanmedian(adata_dyn.obs.loc[split_mask, 'development_pseudotime'])) if split_mask.any() else float(np.nanmedian(adata_dyn.obs['development_pseudotime']))
else:
    print('Not enough terminal clusters were found for a CellRank branch-aware comparison.')

🔍 Dynamic feature analysis:
   Views: 2 | Features: 4
   Pseudotime: development_pseudotime
   Grouping: clusters
   Layer: Ms
   GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
   ✓ Successful fits: 8/8
   ✓ Fitted rows: 1600
   ✓ Raw observations stored: 4288

if cellrank_branch_dyn is not None:
    ov.pl.dynamic_trends(
        cellrank_branch_dyn,
        genes=['Gcg', 'Ins2', 'Pdx1'],
        compare_groups=True,
        split_time=cellrank_split_time,
        shared_trunk=True,
        add_point=True,
        point_color_by='group',
        figsize=(4.2, 3),
        linewidth=2.2,
        ncols=3,
        legend_loc='right margin',
        legend_fontsize=8,

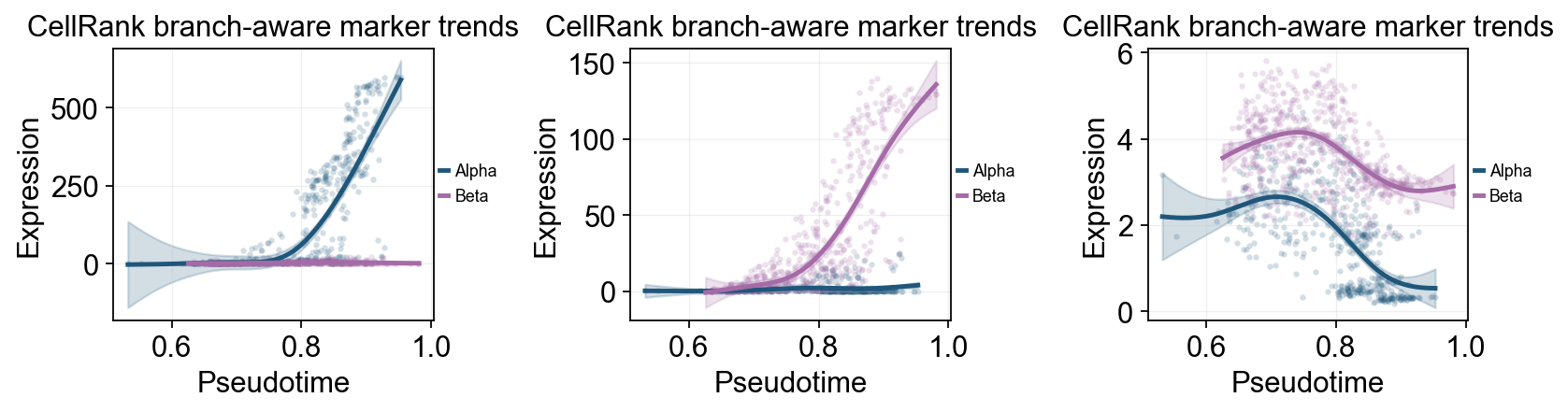

        title='CellRank branch-aware marker trends',
    )
    plt.show()

🔍 Dynamic trend plotting:
   Features: 3 | Groups: 2
   compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!

Summarize marker programs with dynamic_heatmap

The development pseudotime can also drive ov.pl.dynamic_heatmap. Here we group marker genes by endocrine program and read smoothed expression from the Ms layer generated during the scVelo moments step, so the heatmap complements the single-gene trend panels above.

cellrank_marker_modules = {
    'Endocrine progenitor': ['Sox9', 'Neurog3', 'Fev'],
    'Alpha fate': ['Gcg', 'Arx'],
    'Beta fate': ['Pax4', 'Ins1', 'Ins2', 'Pdx1'],
    'Delta fate': ['Sst', 'Hhex'],
}
cellrank_marker_modules = {
    program: [gene for gene in genes if gene in adata.var_names]
    for program, genes in cellrank_marker_modules.items()
}
cellrank_marker_modules = {
    program: genes for program, genes in cellrank_marker_modules.items() if genes
}

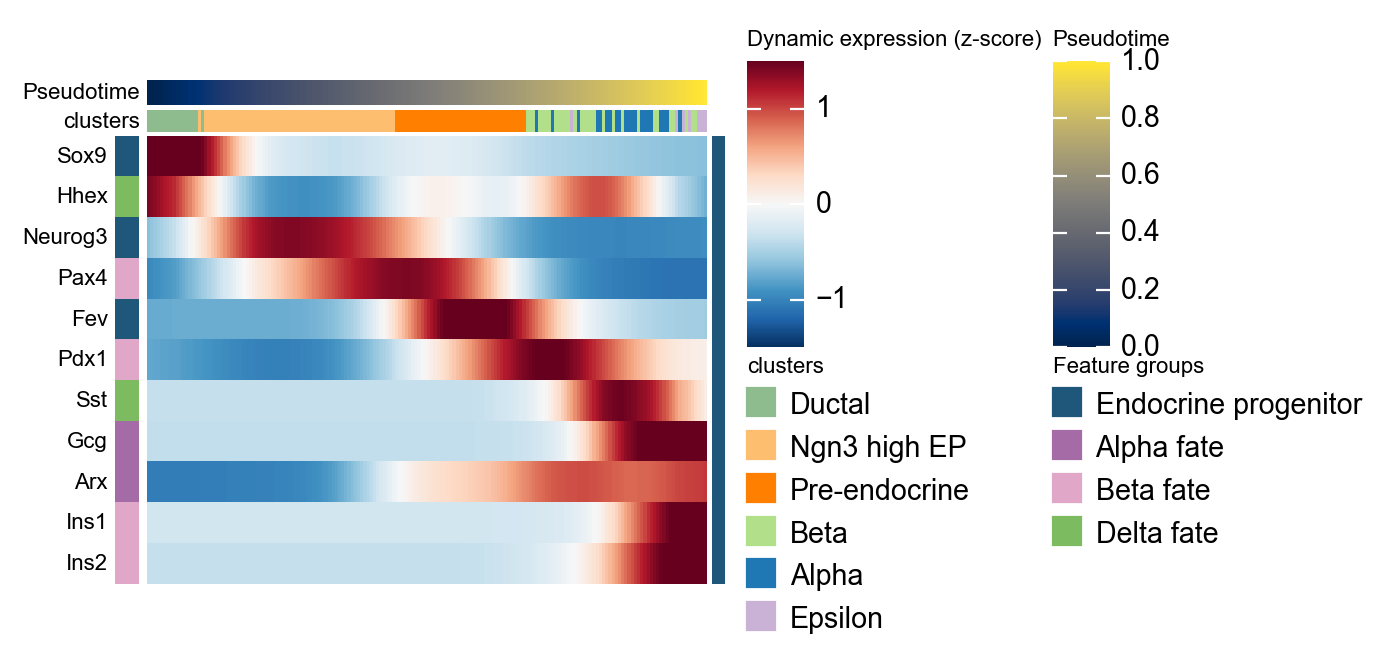

cellrank_heatmap = ov.pl.dynamic_heatmap(
    adata,
    var_names=cellrank_marker_modules,
    pseudotime='development_pseudotime',
    layer='Ms',
    use_cell_columns=False,
    cell_annotation='clusters',
    cell_bins=180,
    smooth_window=17,
    fitted_window=31,
    figsize=(5, 4),
    standard_scale='var',
    cmap='RdBu_r',
    use_fitted=True,
    show_row_names=True,
    border=False,
    show=False,
)

🔍 Dynamic heatmap:
   Candidate features: 11
   Pseudotime: development_pseudotime
   Cell annotation: clusters
   use_fitted=True | cell_bins=180 | cmap=RdBu_r
✅ Dynamic heatmap completed!
✓ Matrix shape: 11 features × 176 columns
