Circular UMAP with plot1cell

Python port of the R package plot1cell’s plot_circlize (Wu 2021). Clusters become arc sectors on the unit circle (sector length ∝ log10(n_cells)); the UMAP / t-SNE scatter and KDE contour live inside the circle; any list of adata.obs columns you pass to tracks= becomes outer concentric rings.

This notebook walks through four real scales — all pulled straight from CELLxGENE Discover:

Scale	Dataset	Cell types	Tracks shown
10k	Krasnow Lung Cell Atlas (Smart-seq2)	40	donor · compartment · sex · age
50k	Mature kidney	29	compartment · tissue · sex · cell_state
100k	Human distal airways (healthy + COPD)	44	disease · tissue · assay · sex · ethnicity
200k	Lung full cell & nuclei atlas	23	smoking · BMI · age · tissue · assay · sex

Note: above ~10 clusters the function’s label_orient='auto' switches from tangent to radial labels so even 40- to 60-type rings stay readable. With 3-6 tracks you can see plot1cell’s composition-within-sector behaviour on many variables at once.

Setup

All four datasets are available as public .h5ad files from the CELLxGENE CDN. We cache each under data/ on first run.

import omicverse as ov
ov.style(font_path='arial')

%load_ext autoreload
%autoreload 2

🔬 Starting plot initialization...
Using already downloaded Arial font from: /tmp/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ NVIDIA CUDA GPUs detected: 1
    • [CUDA 0] NVIDIA H100 80GB HBM3
      Memory: 79.1 GB | Compute: 9.0

   ____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

🔖 Version: 2.1.2rc1   📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
Registered as: Arial
🧬 Detecting GPU devices…
✅ NVIDIA CUDA GPUs detected: 1
    • [CUDA 0] NVIDIA H100 80GB HBM3
      Memory: 79.1 GB | Compute: 9.0

   ____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

🔖 Version: 2.1.2rc1   📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.

import os
CDN = 'https://datasets.cellxgene.cziscience.com/'
DATA = {
    'lung10k':   'c88e0403-da93-40f4-99b5-f5fdeb81a82c.h5ad',  # Krasnow Smart-seq2
    'kidney50k': '7dafa492-6129-4dff-a794-17bdefde3575.h5ad',  # Mature kidney full
    'airway100k':'861b6b12-f9c9-4434-8d09-695a5156ce23.h5ad',  # distal airways
    'lung200k':  '769fff4f-099a-46e1-917b-06ce1fee858a.h5ad',  # all cells and nuclei
}
os.makedirs('data', exist_ok=True)
def fetch(key):
    local = f'{key}.h5ad'
    if not os.path.exists(local):
        print(f'downloading {key}...')
        ov.datasets.download_data(CDN + DATA[key], local)
    return local

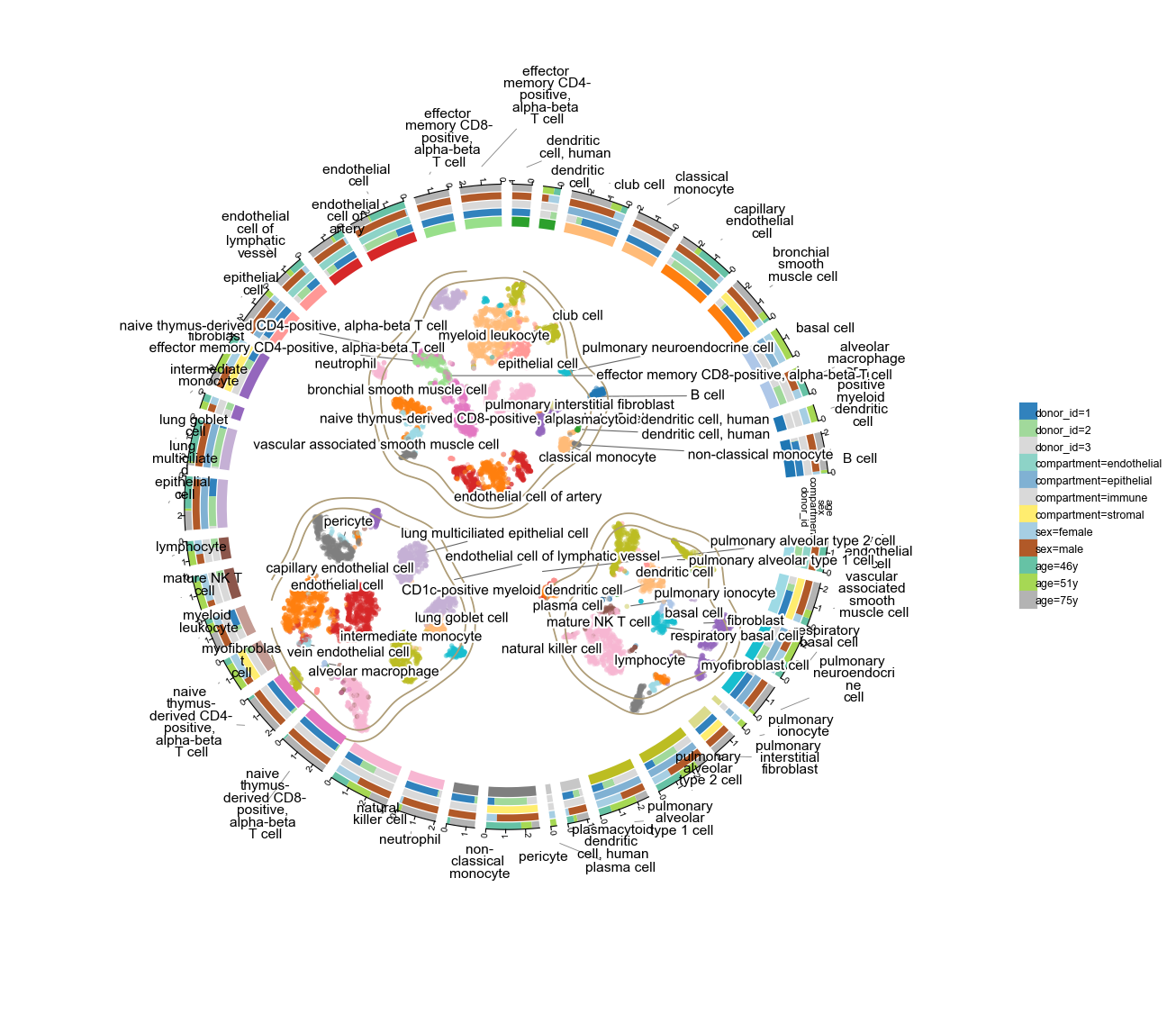

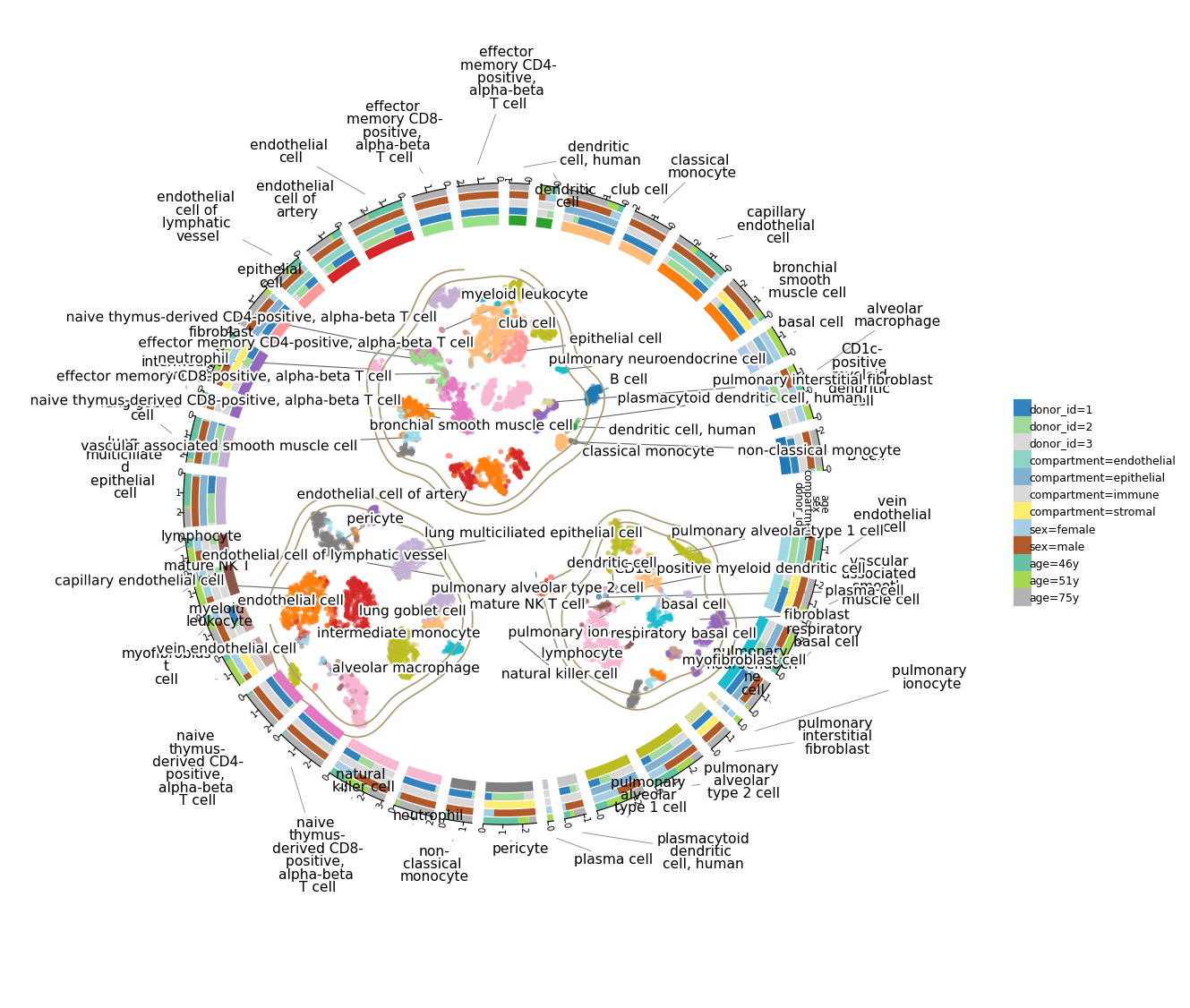

Scale 1 — 10 k cells (Krasnow Lung Cell Atlas, Smart-seq2)

9 409 cells × 40 cell types. This dataset only carries a t-SNE (no UMAP) — ov.pl.plot1cell accepts any 2-D embedding via basis=, so we plot against X_tSNE directly. Four tracks: donor (3), compartment (4 — immune / epithelial / endothelial / stromal), sex (2), age (3).

a10k = ov.read('data/'+fetch('lung10k'))
# Shorten the long development_stage strings for the legend
a10k.obs['age'] = a10k.obs['development_stage'].astype(str).str.replace('-year-old stage', 'y', regex=False)
a10k

downloading lung10k...
🔍 Downloading data to ./data/lung10k.h5ad
⚠️ File ./data/lung10k.h5ad already exists

AnnData object with n_obs × n_vars = 9409 × 53514
    obs: 'nGene', 'nReads', 'plate.barcode', 'cell.id', 'region', 'label', 'sorter', 'sort.location', 'sample', 'location', 'donor_id', 'percent.ercc', 'percent.ribo', 'gating', 'free_annotation', 'Number of splices: Total', 'Number of splices: Annotated (sjdb)', 'Number of splices: GT-AG', 'Number of splices: GC-AG', 'Number of splices: AT-AC', 'Number of splices: Non-canonical', 'Mapping speed, Million of reads per hour', 'Average input read length', 'compartment', 'tissue_ontology_term_id', 'disease_ontology_term_id', 'development_stage_ontology_term_id', 'assay_ontology_term_id', 'cell_type_ontology_term_id', 'self_reported_ethnicity_ontology_term_id', 'sex_ontology_term_id', 'is_primary_data', 'suspension_type', 'tissue_type', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid', 'age'
    var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type'
    uns: 'cell_type_ontology_term_id_colors', 'citation', 'default_embedding', 'organism', 'organism_ontology_term_id', 'schema_reference', 'schema_version', 'title'
    obsm: 'X_Compartment_tSNE', 'X_tSNE'

ov.pl.plot1cell(
    a10k, clusters='cell_type', basis='X_tSNE',
    tracks=['donor_id', 'compartment', 'sex', 'age'],
    point_size=6, point_alpha=0.5,
    figsize=(9, 9), label_fontsize=7,
)

<Axes: >

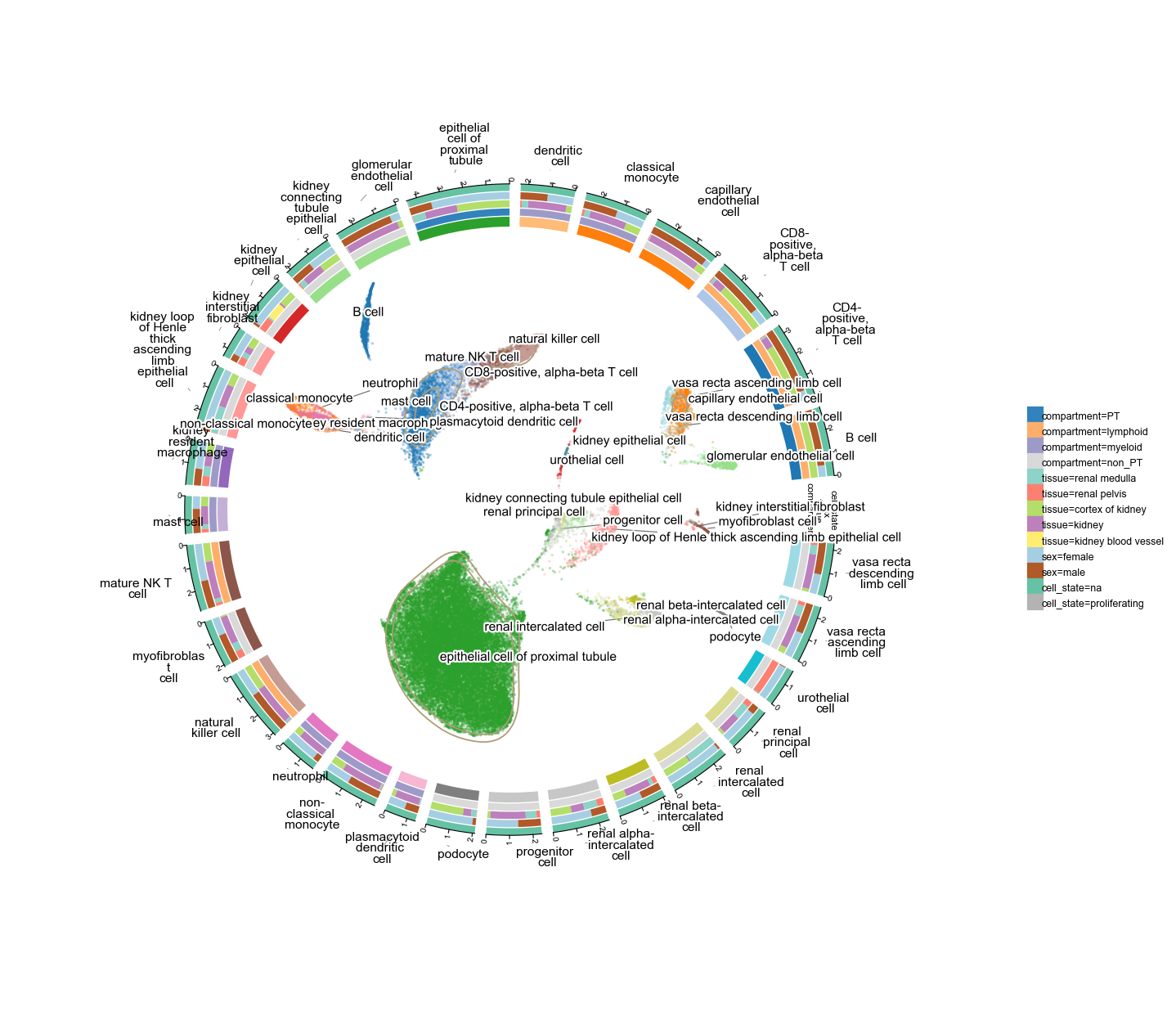

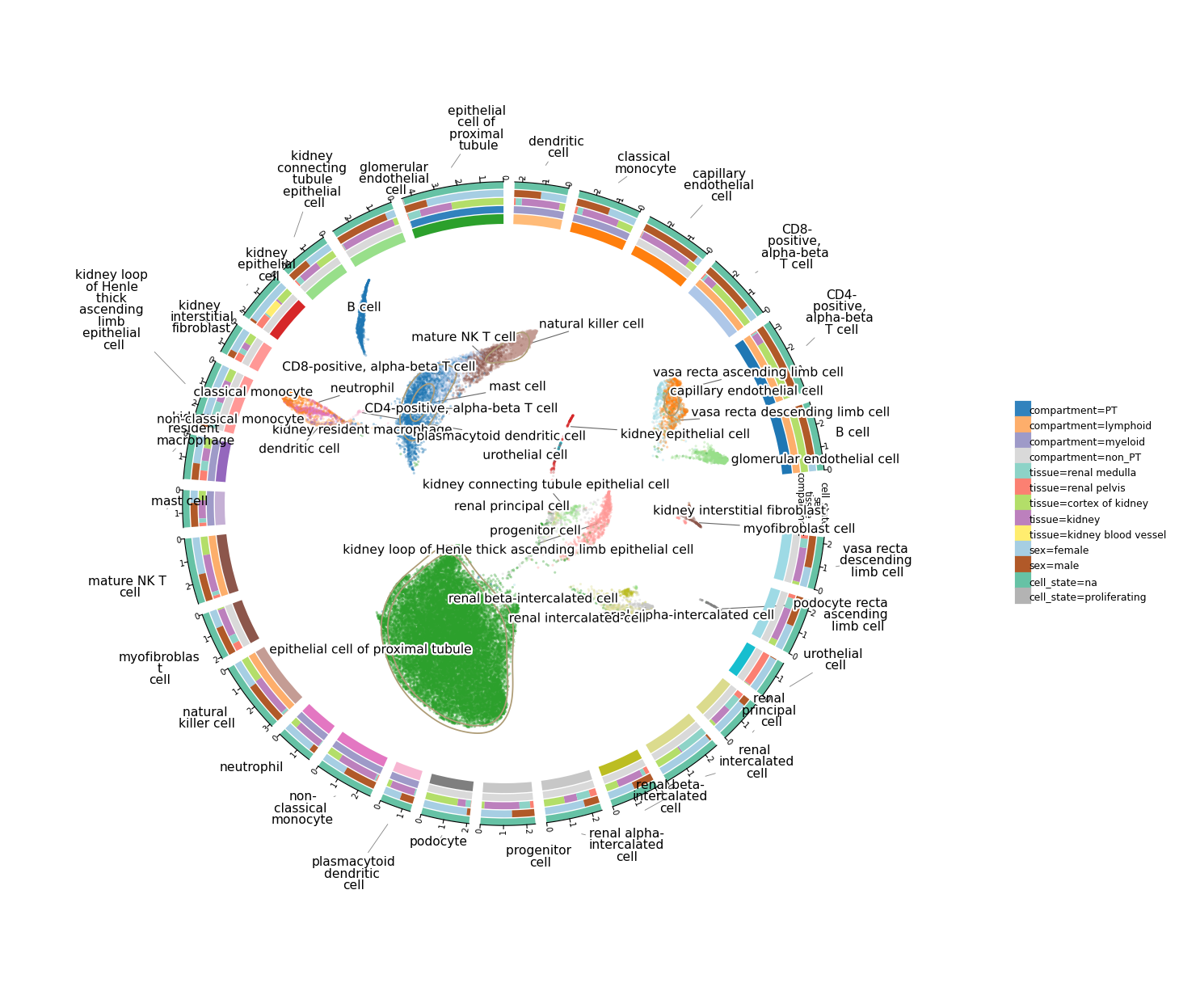

Scale 2 — 50 k cells (Mature kidney)

40 268 cells × 29 cell types spanning 5 kidney sub-tissues, 12 donors, mixed pediatric / adult / tumour samples. Four tracks: compartment (proximal tubule / non-PT / lymphoid / myeloid), tissue (cortex / medulla / …), sex, and the cell_state (proliferating flag).

a50k = ov.read('data/'+fetch('kidney50k'))
a50k

downloading kidney50k...
🔍 Downloading data to ./data/kidney50k.h5ad
⚠️ File ./data/kidney50k.h5ad already exists

AnnData object with n_obs × n_vars = 40268 × 32088
    obs: 'donor_id', 'donor_age', 'self_reported_ethnicity_ontology_term_id', 'sample_uuid', 'tissue_ontology_term_id', 'development_stage_ontology_term_id', 'suspension_uuid', 'suspension_type', 'library_uuid', 'assay_ontology_term_id', 'mapped_reference_annotation', 'is_primary_data', 'cell_type_ontology_term_id', 'author_cell_type', 'cell_state', 'disease_ontology_term_id', 'reported_diseases', 'sex_ontology_term_id', 'Short_Sample', 'Project', 'Experiment', 'compartment', 'broad_celltype', 'tissue_type', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid'
    var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type'
    uns: 'citation', 'default_embedding', 'organism', 'organism_ontology_term_id', 'schema_reference', 'schema_version', 'title'
    obsm: 'X_umap'

ov.pl.plot1cell(
    a50k, clusters='cell_type', basis='X_umap',
    tracks=['compartment', 'tissue', 'sex', 'cell_state'],
    point_size=2, point_alpha=0.35,
    figsize=(10, 10), label_fontsize=7,
)

<Axes: >

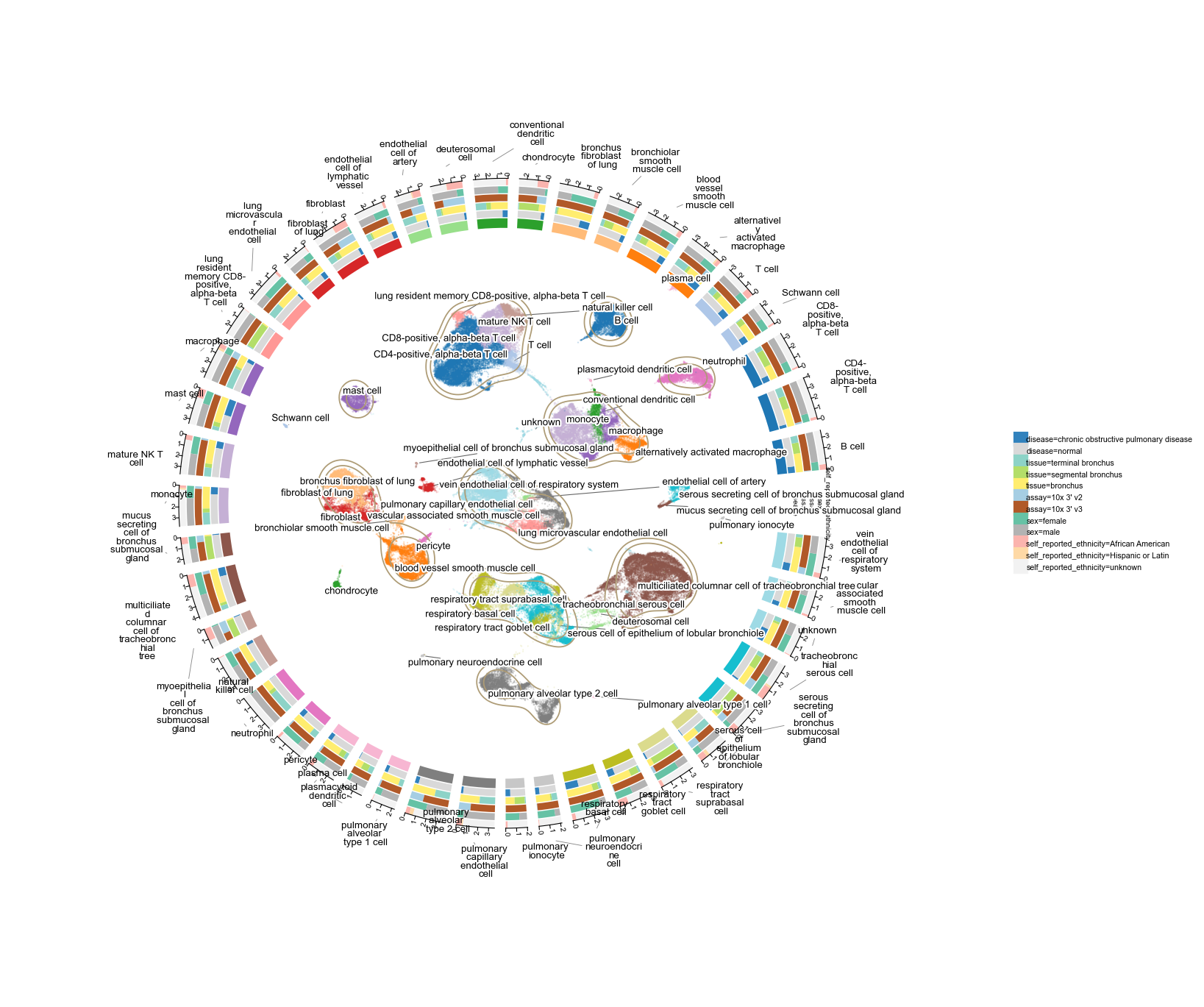

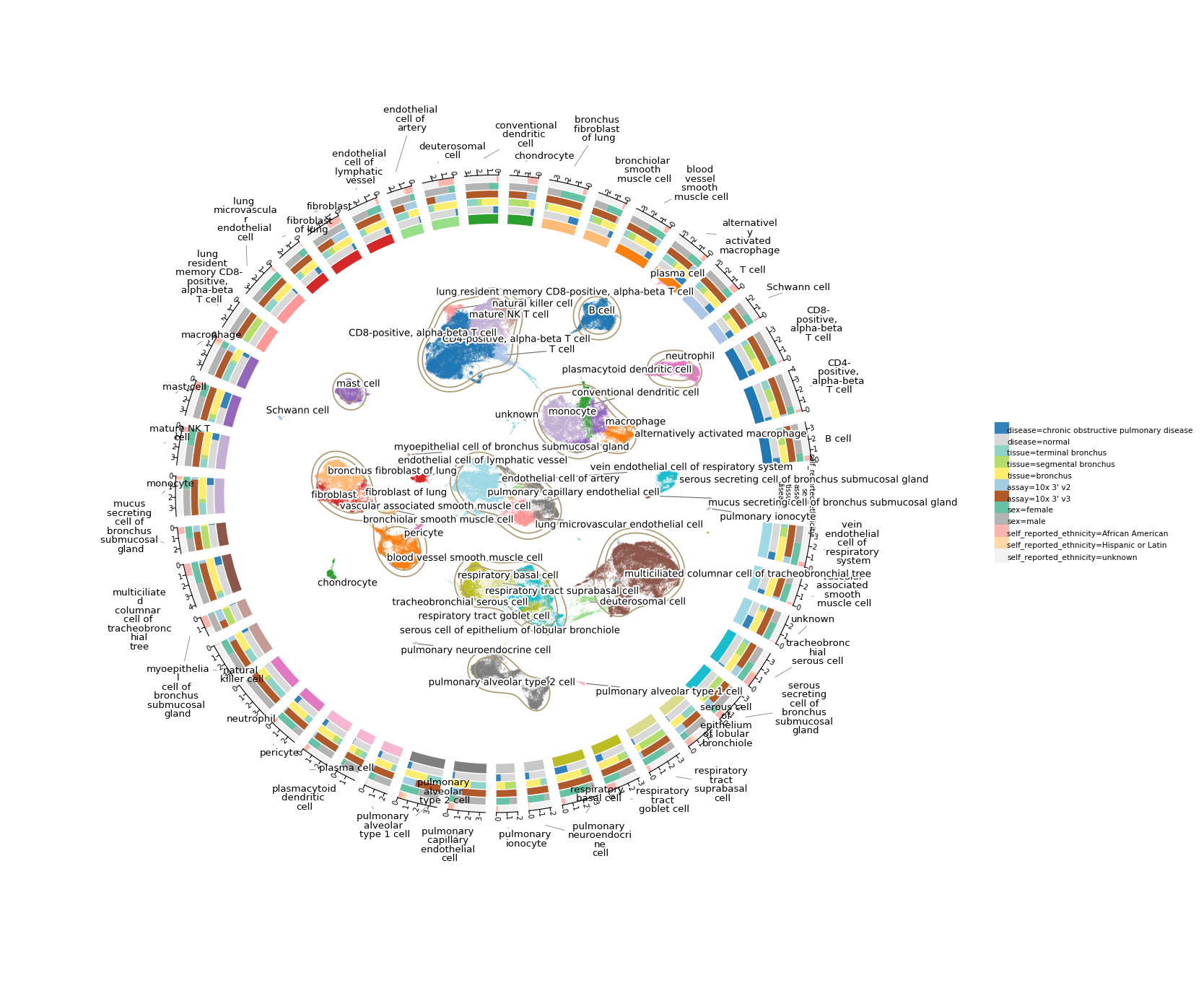

Scale 3 — 100 k cells (distal airways, healthy + COPD)

115 788 cells × 44 cell types across 17 donors and two disease states (normal vs. COPD). Five tracks: disease, tissue (distal / terminal / proximal airway), assay, sex, self_reported_ethnicity.

At this scale the scatter is dense — we dial point size + alpha down so the KDE contour still reads through. Labels are all radial so the 44 cell types don’t collide.

a100k = ov.read('data/'+fetch('airway100k'))
a100k

downloading airway100k...
🔍 Downloading data to ./data/airway100k.h5ad
⚠️ File ./data/airway100k.h5ad already exists

AnnData object with n_obs × n_vars = 115788 × 35468
    obs: 'sample_id', 'donor_id', 'protocol_URL', 'institute', 'sample_collection_site', 'sample_collection_relative_time_point', 'library_id', 'library_id_repository', 'author_batch_notes', 'manner_of_death', 'sample_source', 'sex_ontology_term_id', 'sample_collection_method', 'tissue_type', 'sampled_site_condition', 'tissue_ontology_term_id', 'tissue_free_text', 'sample_preservation_method', 'suspension_type', 'cell_enrichment', 'cell_viability_percentage', 'cell_number_loaded', 'sample_collection_year', 'assay_ontology_term_id', 'library_preparation_batch', 'library_sequencing_run', 'sequenced_fragment', 'sequencing_platform', 'reference_genome', 'gene_annotation_version', 'alignment_software', 'intron_inclusion', 'disease_ontology_term_id', 'author_cell_type', 'cell_type_ontology_term_id', 'author_cell_type_markers', 'author_cell_type_description', 'self_reported_ethnicity_ontology_term_id', 'is_primary_data', 'development_stage_ontology_term_id', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid'
    var: 'feature_types', 'genome', 'gene_symbol', 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type'
    uns: 'author_cell_type_colors', 'author_cell_type_markers', 'batch_condition', 'citation', 'default_embedding', 'organism', 'organism_ontology_term_id', 'schema_reference', 'schema_version', 'study_pi', 'title', 'unpublished'
    obsm: 'X_pca', 'X_tsne', 'X_umap'

ov.pl.plot1cell(
    a100k, clusters='cell_type', basis='X_umap',
    tracks=['disease', 'tissue', 'assay', 'sex',
            'self_reported_ethnicity'],
    point_size=1, point_alpha=0.25,
    figsize=(11, 11), label_fontsize=6,
)

<Axes: >

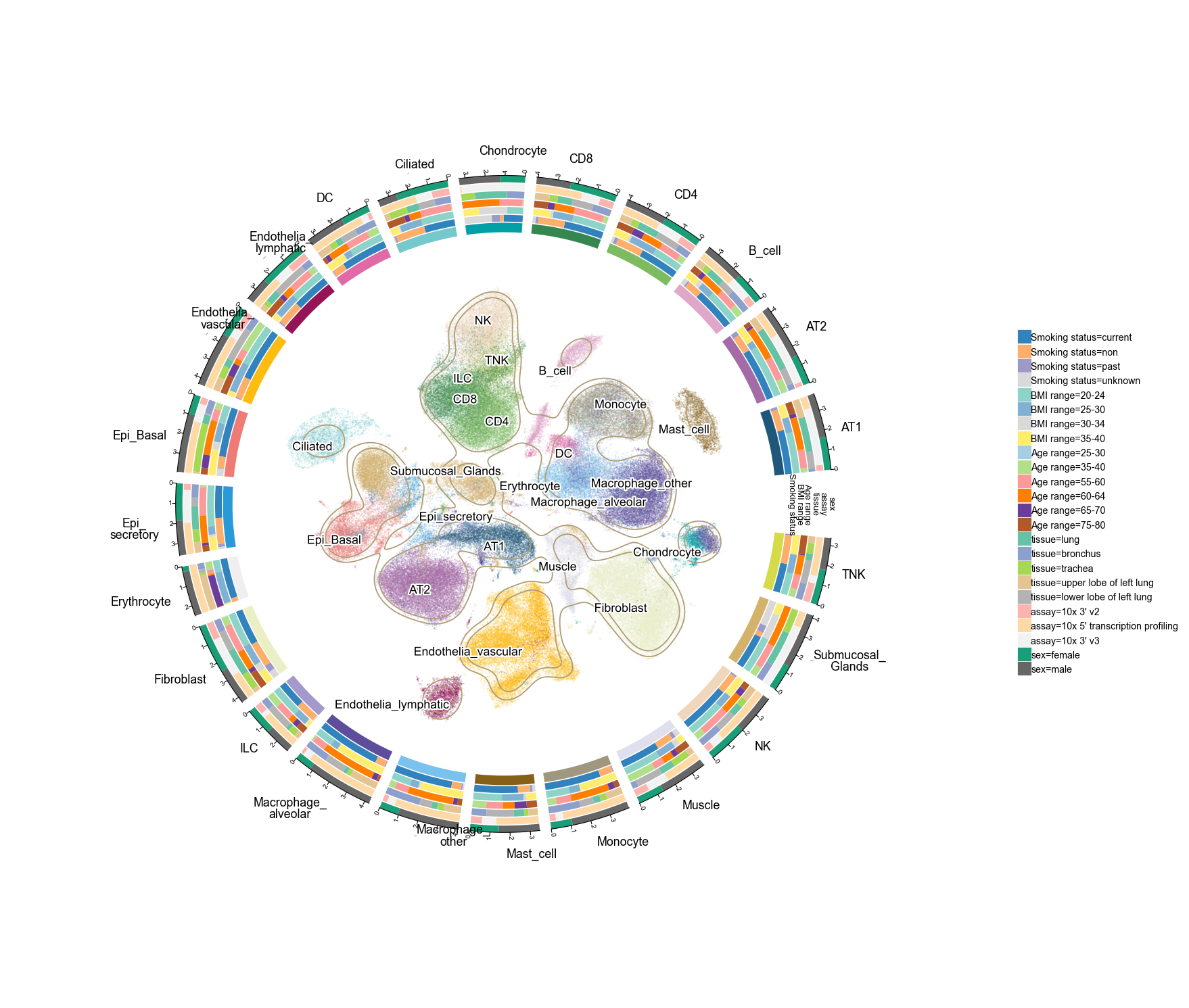

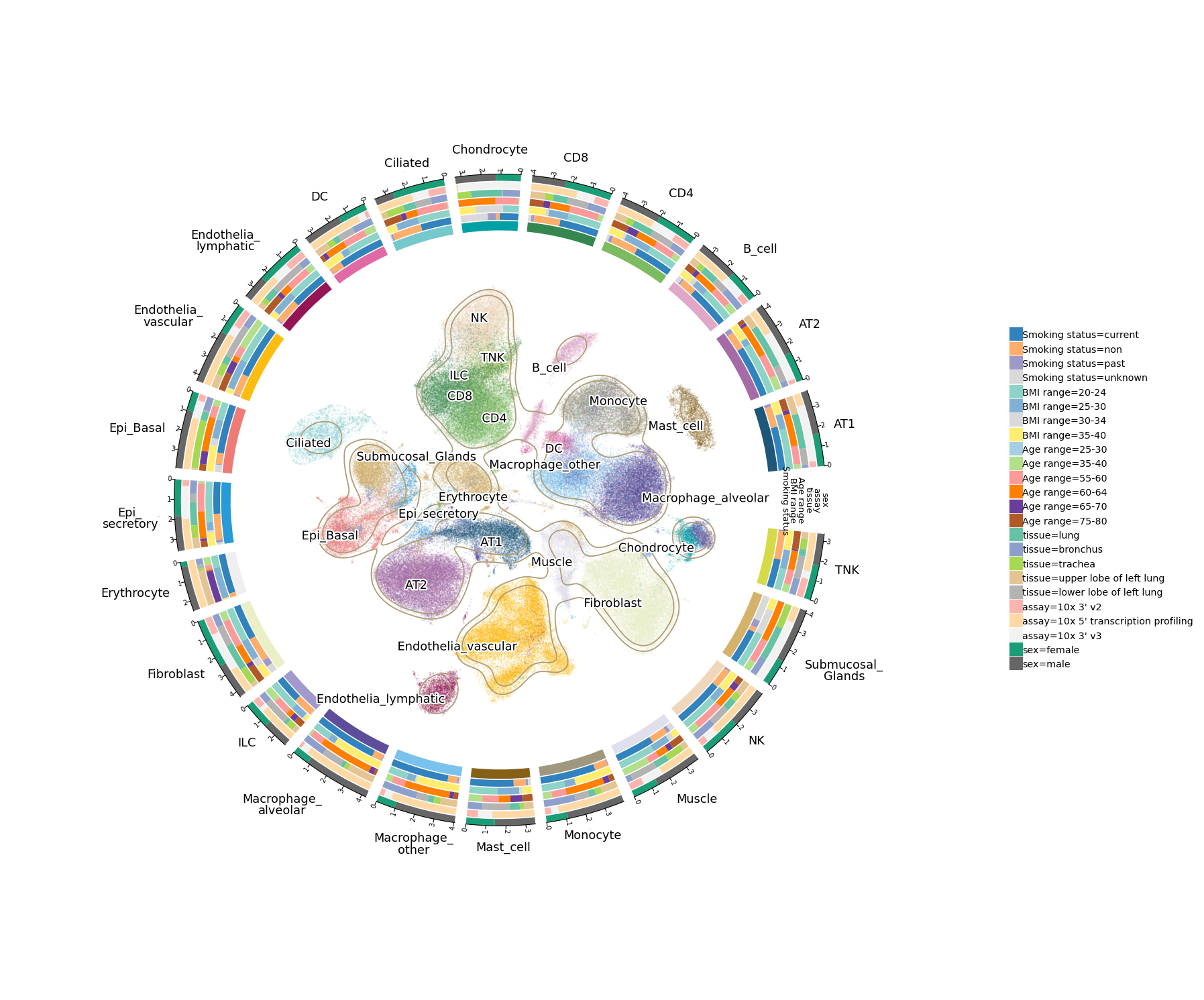

Scale 4 — 200 k cells (Lung all cells and nuclei)

193 108 cells × 60 fine cell types — we use the curator’s mid-level collapse Celltypes_master_higher_immune (23 types) to keep the ring readable. Six tracks: smoking status, BMI range, age range, tissue sub-region, assay, sex.

The full file is ~2 GB. If RAM is tight, you can subsample: adata = adata[np.random.choice(adata.n_obs, 50_000, replace=False)]. The KDE contour is still smooth at 50k sampled points.

a200k = ov.read('data/'+fetch('lung200k'))
# Keep fewer genes to reduce memory — plot1cell only needs obsm + obs
a200k = a200k[:, :200].copy()
a200k

downloading lung200k...
🔍 Downloading data to ./data/lung200k.h5ad
✅ Download completed

AnnData object with n_obs × n_vars = 193108 × 200
    obs: 'Celltypes', 'Celltypes_master_high', 'Celltypes_master_higher', 'Celltypes_master_higher_immune', 'Loc_true', 'suspension_type', 'donor_id', 'Gender', 'Sample', 'ID', 'Protocol_plot', 'assay_ontology_term_id', 'Study', 'PoolDon', 'DonorPool', 'scDonor_snBatch', 'n_genes', 'n_genes_by_counts', 'total_counts', 'total_counts_mt', 'pct_counts_mt', 'is_primary_data', 'disease_ontology_term_id', 'donor_id_2', 'sex_ontology_term_id', 'self_reported_ethnicity_ontology_term_id', 'Age range', 'Smoking status', 'Years smoking', 'BMI range', 'development_stage_ontology_term_id', 'Location_long', 'Cell_fraction', 'tissue_ontology_term_id', 'cell_type_ontology_term_id', 'tissue_type', 'cell_type', 'assay', 'disease', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'observation_joinid'
    var: 'mt', 'n_cells-0', 'n_cells_by_counts-0', 'mean_counts-0', 'pct_dropout_by_counts-0', 'total_counts-0', 'n_cells-1', 'n_cells_by_counts-1', 'mean_counts-1', 'pct_dropout_by_counts-1', 'total_counts-1', 'n_cells', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection', 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_length', 'feature_type'
    uns: 'Celltypes_colors', 'ID_colors', 'Loc_true_colors', 'citation', 'default_embedding', 'hvg', 'leiden', 'neighbors', 'organism', 'organism_ontology_term_id', 'pca', 'scDonor_snBatch_colors', 'schema_reference', 'schema_version', 'title', 'umap'
    obsm: 'X_pca', 'X_pca_hm', 'X_umap', 'X_umap_BBKNN_scDonor_snBatch', 'X_umap_Harmony_Donor_n_Material', 'X_umap_Harmony_Material', 'X_umap_Harmony_scDonor_snBatch'

ov.pl.plot1cell(
    a200k, clusters='Celltypes_master_higher_immune',
    basis='X_umap_Harmony_scDonor_snBatch',
    tracks=['Smoking status', 'BMI range', 'Age range',
            'tissue', 'assay', 'sex'],
    point_size=0.8, point_alpha=0.2,
    figsize=(12, 12), label_fontsize=8,
)

<Axes: >

Key parameters

Parameter	Purpose
clusters	obs column with the cluster label (required).
basis	obsm key, default 'X_umap'. Any 2-D embedding works (X_tSNE, X_pca, harmony UMAPs, …).
tracks	list of obs columns → one concentric ring each, coloured by the run-length composition within each cluster sector. No hard limit; 6 rings render fine.
coord_scale	how much of the unit circle the scatter fills (0–1, default 0.8).
contour_levels	KDE levels to overlay; None disables.
label_orient	'auto' (default) | 'tangent' | 'radial'. Auto uses tangent for ≤10 clusters (classic R look) and radial above that so labels never overlap.
gap_between_deg, gap_start_deg	angular gaps between sectors (2°) and at the start of the circle (12°) — match the R convention.
cluster_palette, track_palette	override the default ov palette. Accepts a colormap name or a list of colors.
bg_color	canvas colour (default the R parchment '#F9F2E4'). Use 'white' for a plain look.
point_size, point_alpha	for dense scatters (> 50k points) drop both to keep the KDE contour visible through the cloud.
return_data=True	also return the per-cell dataframe used internally.
