Spatial clustering with GraphST + pymclustR

Spatial clustering with GraphST + pymclustR#

GraphST is a contrastive-learning spatial embedder. Top-tier in the Nature Methods 2024-04 benchmark.

This notebook runs the GraphST spatial embedder on the Maynard 151676 dorsolateral prefrontal cortex Visium sample (3 460 spots × 10 747 genes) and clusters the resulting embedding with pymclustR, a pure-Python re-implementation of CRAN mclust (no rpy2 / R dependency).

Pre-processed input lives at /scratch/users/steorra/analysis/omicverse_dev/omicverse-test/notebooks/data/cluster_svg.h5ad, which is the canonical fixture used in the original t_cluster_space tutorial.

0. Load AnnData + Ground Truth#

import omicverse as ov
import scanpy as sc
import pandas as pd, os, anndata as ad

ov.style(font_path='Arial')

# Load the pre-processed AnnData (3460 spots × 10747 genes — the same
# input the original spatial-clustering tutorial was developed against).
DATA_DIR = '/scratch/users/steorra/analysis/omicverse_dev/omicverse-test/data/151676'
H5AD     = '/scratch/users/steorra/analysis/omicverse_dev/omicverse-test/notebooks/data/cluster_svg.h5ad'
adata = ad.read_h5ad(H5AD)
truth = pd.read_csv(os.path.join(DATA_DIR, '151676_truth.txt'),
                    sep='\t', header=None, index_col=0)
truth.columns = ['Ground Truth']
adata.obs['Ground Truth'] = truth['Ground Truth'].reindex(adata.obs_names)
print('shape:', adata.shape, '  annotated:',
      adata.obs['Ground Truth'].notna().sum())
adata

🔬 Starting plot initialization...
Using already downloaded Arial font from: /tmp/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ NVIDIA CUDA GPUs detected: 1
    • [CUDA 0] NVIDIA H100 80GB HBM3
      Memory: 79.1 GB | Compute: 9.0

   ____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

🔖 Version: 2.1.2rc1   📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
shape: (3460, 10747)   annotated: 3431

AnnData object with n_obs × n_vars = 3460 × 10747
    obs: 'in_tissue', 'array_row', 'array_col', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'Ground Truth'
    var: 'gene_ids', 'feature_types', 'genome', 'n_cells_by_counts', 'mean_counts', 'log1p_mean_counts', 'pct_dropout_by_counts', 'total_counts', 'log1p_total_counts', 'space_variable_features', 'highly_variable'
    uns: 'REFERENCE_MANU', 'spatial'
    obsm: 'spatial'
    layers: 'counts'

sc.pl.spatial(adata, img_key='hires', color=['Ground Truth'])
../../_images/f0607711d30277c555176205fd70751553f870230fe807472e10b17132301f00.png

1. Embed with GraphST#

GraphST (Long et al., Nat. Comm. 2023) jointly embeds gene expression and spatial coordinates with a contrastive learning objective. It was rated one of the best spatial-clustering algorithms in Nature Methods’s 2024-04 benchmark.

methods_kwargs = {'GraphST': {'device': 'cuda:0', 'n_pcs': 30}}
adata = ov.space.clusters(adata, methods=['GraphST'],
                          methods_kwargs=methods_kwargs, lognorm=1e4)

The GraphST method is used to embed the spatial data.
Begin to train ST data...
Optimization finished for ST data!
computing PCA🔍
    with n_comps=30
   🖥️ Using sklearn PCA for CPU computation
   🖥️ sklearn PCA backend: CPU computation
   📊 PCA input data type: ArrayView, shape: (3460, 3000), dtype: float32
🔧 PCA solver used: covariance_eigh
    finished✅ (3.39s)

╭─ SUMMARY: pca ─────────────────────────────────────────────────────╮
│  Duration: 3.3994s                                                 │
│  Shape:    3,460 x 3,000 (Unchanged)                               │
│                                                                    │
│  CHANGES DETECTED                                                  │
│  ────────────────                                                  │
│  ● UNS    │ ✚ graphst|original|cum_sum_eigenvalues                 │
│           │ ✚ graphst|original|pca_var_ratios                      │
│           │ ✚ pca                                                  │
│           │ └─ params: {'zero_center': True, 'use_highly_variable': Tr...│
│           │ ✚ status                                               │
│           │ ✚ status_args                                          │
│                                                                    │
│  ● OBSM   │ ✚ X_pca (array, 3460x30)                               │
│           │ ✚ graphst|original|X_pca (array, 3460x30)              │
│                                                                    │
╰────────────────────────────────────────────────────────────────────╯
GraphST embedding has been saved in adata.obsm["GraphST_embedding"]                         and adata.obsm["graphst|original|X_pca"]
The GraphST embedding are stored in adata.obsm["GraphST_embedding"].
Shape: (3460, 3000)

2. Cluster with pymclustR (no rpy2 / R needed)#

method='pymclustR' is a drop-in pure-Python replacement for the historical mclust_R backend — same 14 covariance parameterisations, same EM, same BIC.

ov.utils.cluster(adata, use_rep='graphst|original|X_pca', method='pymclustR',
                 n_components=10, modelNames='EEE', random_state=42)
adata.obs['pymclustR_GraphST'] = ov.utils.refine_label(adata, radius=30, key='pymclustR')
adata.obs['pymclustR_GraphST'] = adata.obs['pymclustR_GraphST'].astype('category')
res = ov.space.merge_cluster(adata, groupby='pymclustR_GraphST',
                             use_rep='graphst|original|X_pca',
                             threshold=0.2, plot=True)

finished: found 10 clusters and added
    'pymclustR', the cluster labels (adata.obs, categorical)
    [model=EEE, loglik=-222646.3214, BIC=-451599.9873]
The merged cluster information is stored in adata.obs["pymclustR_GraphST_tree"].
../../_images/7e06faade8bcf92dbf246510499a1e4e0d9810871ae505471246e90d48d35ba5.png

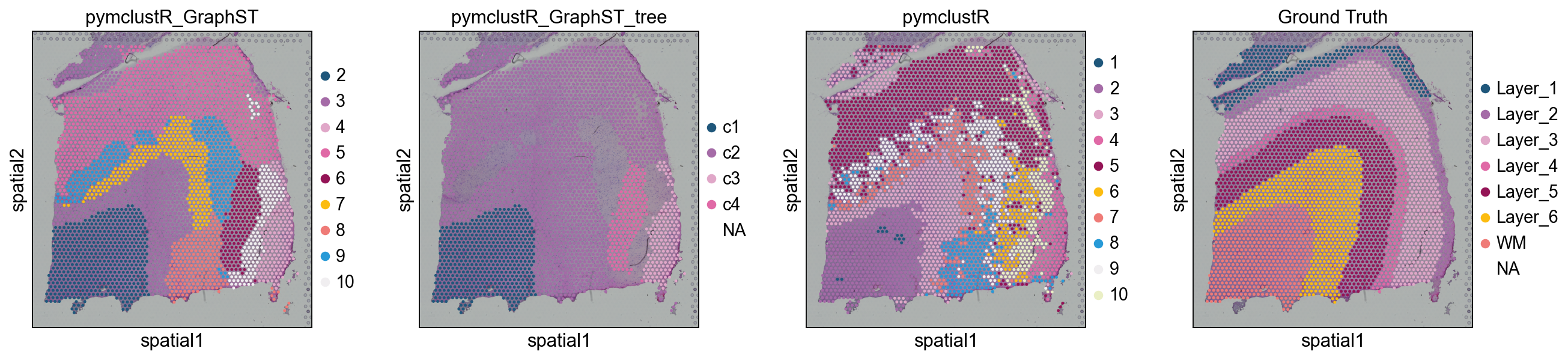

3. Spatial visualisation#

sc.pl.spatial(adata, color=['pymclustR_GraphST',
                            'pymclustR_GraphST_tree' if 'pymclustR_GraphST_tree' in adata.obs.columns else 'pymclustR_GraphST',
                            'pymclustR', 'Ground Truth'])
../../_images/a50b7818d6a33e6f69d446659a01c8c0a4bc310fef11f87d781cf1d469ef8682.png

4. ARI vs Maynard ground truth#

from sklearn.metrics.cluster import adjusted_rand_score

obs = adata.obs.dropna(subset=['Ground Truth'])
ari_raw = adjusted_rand_score(obs['pymclustR'], obs['Ground Truth'])
ari_ref = adjusted_rand_score(obs['pymclustR_GraphST'], obs['Ground Truth'])
print(f'GraphST + pymclustR (raw):     ARI = {ari_raw:.4f}')
print(f'GraphST + pymclustR (refined): ARI = {ari_ref:.4f}')

GraphST + pymclustR (raw):     ARI = 0.3541
GraphST + pymclustR (refined): ARI = 0.3916
