Trajectory Inference with Diffusion Map and PAGA#
Here we use pancreas endocrine development data to demonstrate a Diffusion Map + PAGA workflow: diffusion geometry places cells along a smooth manifold, and PAGA summarizes the coarse-grained branching topology.
Method background#
Following the Scanpy diffusion pseudotime documentation, the Scanpy PAGA trajectory tutorial, and the original PAGA paper, this workflow combines two complementary ideas.
Diffusion Map emphasizes gradual transitions by embedding cells according to random-walk structure on the neighborhood graph.
Diffusion Pseudotime (DPT) then orders cells along that manifold once a root region is known.
PAGA (partition-based graph abstraction) summarizes how coarse cell groups are connected, making the global topology easier to interpret than a dense single-cell graph alone.
This combination is especially helpful when we want both a smooth manifold view and a cluster-level view of the developmental structure.
Why use the pancreas dataset here?#
Pancreatic endocrine development is a compact and interpretable example for diffusion-based trajectory inference. It contains a visible progenitor-to-endocrine progression and multiple endocrine branches, so we can inspect both continuous pseudotime structure and the higher-level topology captured by PAGA.
Preprocess data#
As an example, we apply trajectory inference to pancreas development and then summarize the topology with PAGA.
import scanpy as sc
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings("ignore", category=FutureWarning)
import omicverse as ov
ov.plot_set(font_path='Arial')
%load_ext autoreload
%autoreload 2
🔬 Starting plot initialization...
Using already downloaded Arial font from: /var/folders/rv/3jnfbs0d6r7d0c5bfj7ft5k00000gn/T/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ Apple Silicon MPS detected
• [MPS] Apple Silicon GPU - Metal Performance Shaders available
____ _ _ __
/ __ \____ ___ (_)___| | / /__ _____________
/ / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ / __/ / (__ ) __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/ /____/\___/
🔖 Version: 2.1.3rc1 📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.
adata=ov.datasets.pancreatic_endocrinogenesis()
⚠️ File ./data/endocrinogenesis_day15.h5ad already exists
Loading data from ./data/endocrinogenesis_day15.h5ad
✅ Successfully loaded: 3696 cells × 27998 genes
adata=ov.pp.preprocess(adata,mode='shiftlog|pearson',n_HVGs=3000,)
adata.raw = adata
adata = adata[:, adata.var.highly_variable_features]
ov.pp.scale(adata)
ov.pp.pca(adata,layer='scaled',n_pcs=50)
🔍 [2026-04-28 15:37:34] Running preprocessing in 'cpu' mode...
Begin robust gene identification
After filtration, 17750/27998 genes are kept.
Among 17750 genes, 16426 genes are robust.
✅ Robust gene identification completed successfully.
Begin size normalization: shiftlog and HVGs selection pearson
🔍 Count Normalization:
Target sum: 500000.0
Exclude highly expressed: True
Max fraction threshold: 0.2
⚠️ Excluding 1 highly-expressed genes from normalization computation
Excluded genes: ['Ghrl']
✅ Count Normalization Completed Successfully!
✓ Processed: 3,696 cells × 16,426 genes
✓ Runtime: 0.08s
🔍 Highly Variable Genes Selection (Experimental):
Method: pearson_residuals
Target genes: 3,000
Theta (overdispersion): 100
✅ Experimental HVG Selection Completed Successfully!
✓ Selected: 3,000 highly variable genes out of 16,426 total (18.3%)
✓ Results added to AnnData object:
• 'highly_variable': Boolean vector (adata.var)
• 'highly_variable_rank': Float vector (adata.var)
• 'highly_variable_nbatches': Int vector (adata.var)
• 'highly_variable_intersection': Boolean vector (adata.var)
• 'means': Float vector (adata.var)
• 'variances': Float vector (adata.var)
• 'residual_variances': Float vector (adata.var)
Time to analyze data in cpu: 0.50 seconds.
✅ Preprocessing completed successfully.
Added:
'highly_variable_features', boolean vector (adata.var)
'means', float vector (adata.var)
'variances', float vector (adata.var)
'residual_variances', float vector (adata.var)
'counts', raw counts layer (adata.layers)
End of size normalization: shiftlog and HVGs selection pearson
╭─ SUMMARY: preprocess ──────────────────────────────────────────────╮
│ Duration: 0.5961s │
│ Shape: 3,696 x 27,998 -> 3,696 x 16,426 │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● VAR │ ✚ highly_variable (bool) │
│ │ ✚ highly_variable_features (bool) │
│ │ ✚ highly_variable_rank (float) │
│ │ ✚ means (float) │
│ │ ✚ n_cells (int) │
│ │ ✚ percent_cells (float) │
│ │ ✚ residual_variances (float) │
│ │ ✚ robust (bool) │
│ │ ✚ variances (float) │
│ │
│ ● UNS │ ✚ REFERENCE_MANU │
│ │ ✚ _ov_provenance │
│ │ ✚ history_log │
│ │ ✚ hvg │
│ │ ✚ log1p │
│ │ ✚ status │
│ │ ✚ status_args │
│ │
│ ● LAYERS │ ✚ counts (sparse matrix, 3696x16426) │
│ │
╰────────────────────────────────────────────────────────────────────╯
╭─ SUMMARY: scale ───────────────────────────────────────────────────╮
│ Duration: 0.2987s │
│ Shape: 3,696 x 3,000 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● LAYERS │ ✚ scaled (array, 3696x3000) │
│ │
╰────────────────────────────────────────────────────────────────────╯
computing PCA🔍
with n_comps=50
🖥️ Using sklearn PCA for CPU computation
🖥️ sklearn PCA backend: CPU computation
📊 PCA input data type: ArrayView, shape: (3696, 3000), dtype: float64
🔧 PCA solver used: covariance_eigh
finished✅ (14.51s)
╭─ SUMMARY: pca ─────────────────────────────────────────────────────╮
│ Duration: 14.51s │
│ Shape: 3,696 x 3,000 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● UNS │ ✚ scaled|original|cum_sum_eigenvalues │
│ │ ✚ scaled|original|pca_var_ratios │
│ │
│ ● OBSM │ ✚ scaled|original|X_pca (array, 3696x50) │
│ │
╰────────────────────────────────────────────────────────────────────╯

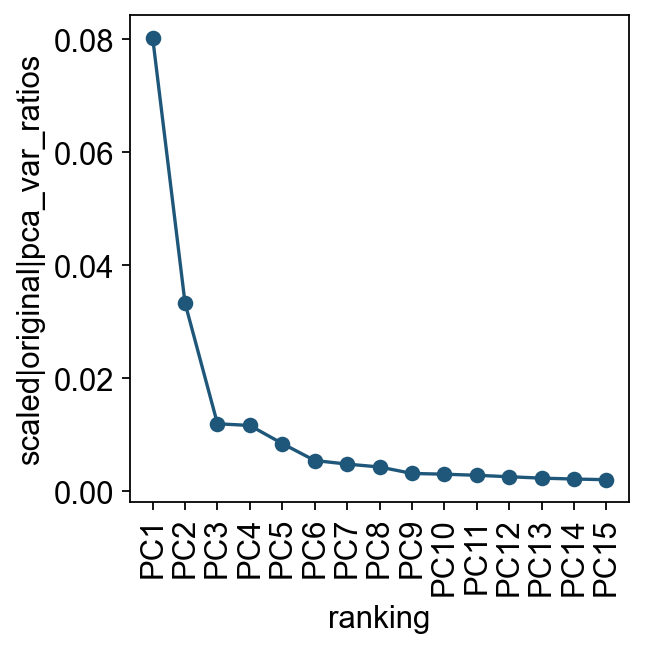

Let us inspect the contribution of single PCs to the total variance in the data. This gives us information about how many PCs we should consider in order to compute the neighborhood relations of cells. In our experience, often a rough estimate of the number of PCs does fine.
ov.utils.plot_pca_variance_ratio(adata, n_pcs=15)

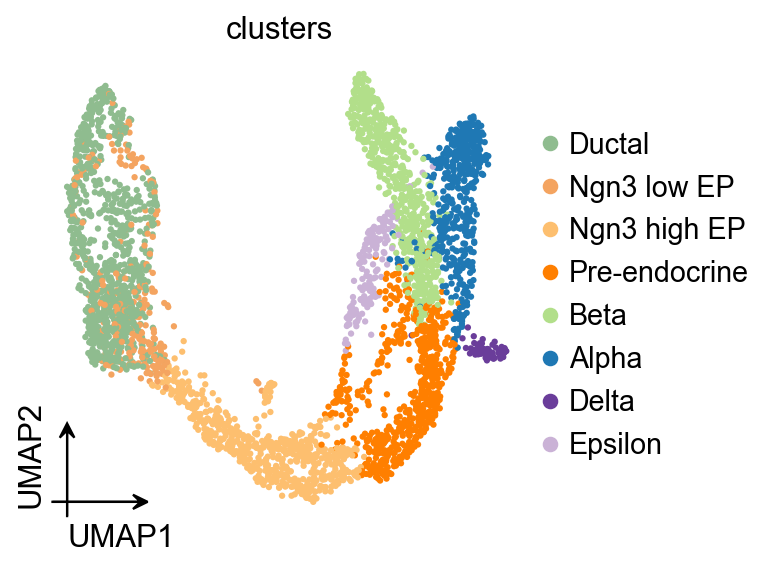

ov.pl.umap(
adata,
color='clusters'
)
X_umap converted to UMAP to visualize and saved to adata.obsm['UMAP']
if you want to use X_umap, please set convert=False
Diffusion map#
Here, we used ov.single.TrajInfer to construct a Trajectory Inference object.
Traj=ov.single.TrajInfer(
adata,
basis='X_umap',
groupby='clusters',
use_rep='scaled|original|X_pca',
n_comps=50,
)
Traj.set_origin_cells('Ductal')
Traj.inference(method='diffusion_map')

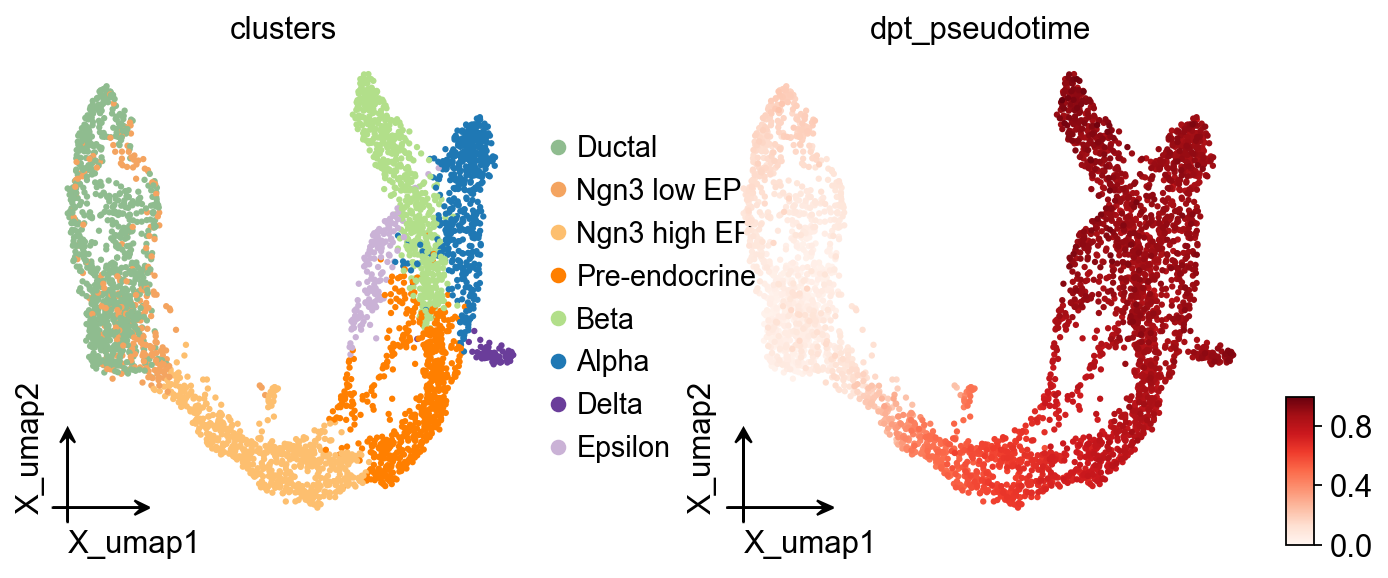

ov.pl.embedding(
adata,
basis='X_umap',
color=['clusters','dpt_pseudotime'],
frameon='small',
cmap='Reds'
)

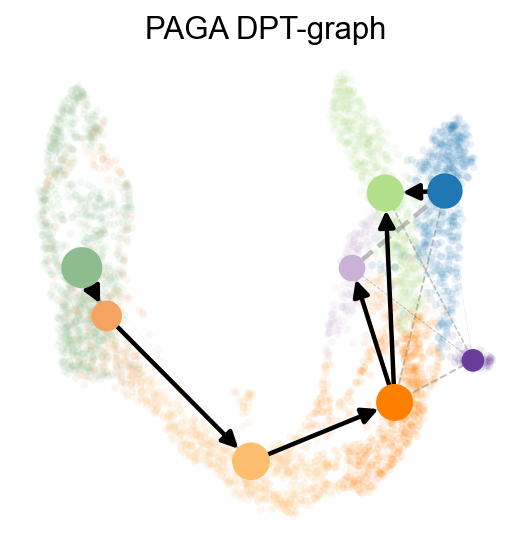

PAGA graph abstraction has benchmarked as top-performing method for trajectory inference. It provides a graph-like map of the data topology with weighted edges corresponding to the connectivity between two clusters.
Here, PAGA is extended by neighbor directionality.
ov.utils.cal_paga(
adata,
use_time_prior='dpt_pseudotime',
vkey='paga',
groups='clusters'
)
running PAGA using priors: ['dpt_pseudotime']
finished
added
'paga/connectivities', connectivities adjacency (adata.uns)
'paga/connectivities_tree', connectivities subtree (adata.uns)
'paga/transitions_confidence', velocity transitions (adata.uns)
ov.utils.plot_paga(
adata,basis='umap',
size=50,
alpha=.1,
title='PAGA DPT-graph',
min_edge_width=2,
node_size_scale=1.5,
show=False,
legend_loc=False
)
<Axes: title={'center': 'PAGA DPT-graph'}>
OV trajectory graph overlay#

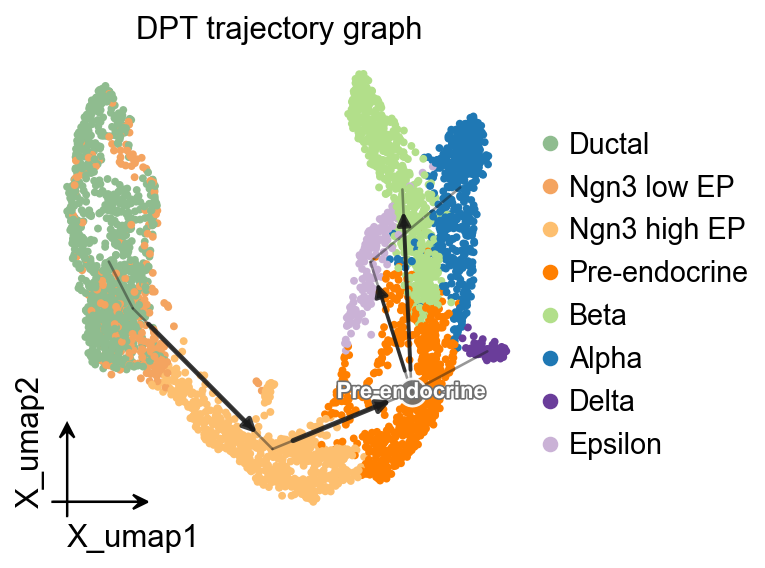

The PAGA graph can also be drawn with the shared ov.pl.trajectory interface, so the same visual grammar is available across trajectory methods.
ov.pl.trajectory(
adata,
method='paga',
basis='X_umap',
groups='clusters',
color='clusters',
title='DPT trajectory graph',
)
plt.show()
OV trajectory overlay#

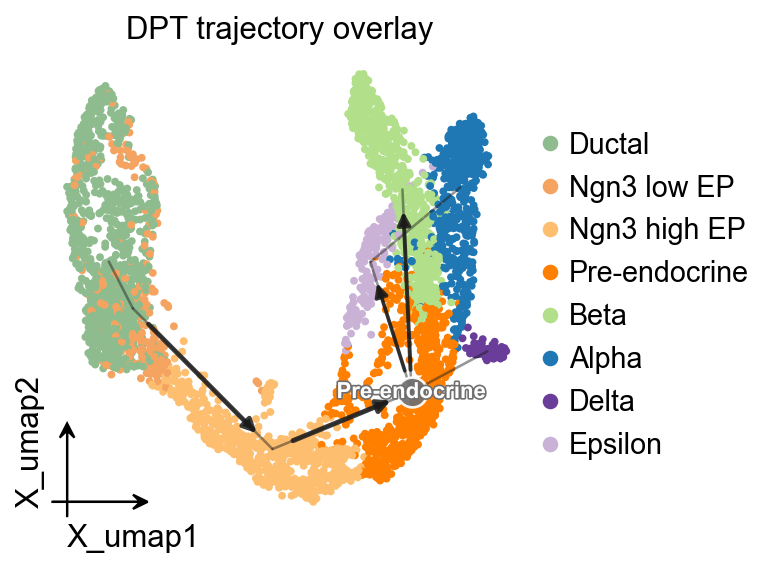

ov.pl.trajectory_overlay adds the PAGA backbone to an existing UMAP embedding.
fig, ax = plt.subplots(figsize=(4, 4))
ov.pl.embedding(
adata,
basis='X_umap',
color='clusters',
ax=ax,
show=False,
size=50,
)
ov.pl.trajectory_overlay(
adata,
ax=ax,
method='paga',
basis='X_umap',
groups='clusters',
)
ax.set_title('DPT trajectory overlay')
plt.show()

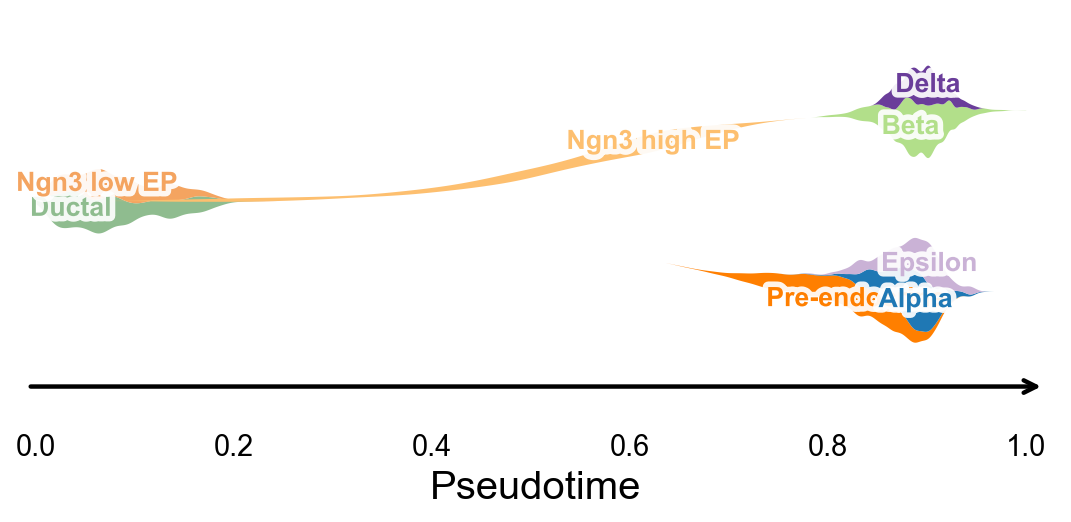

Branch-aware pseudotime stream plot#
ov.pl.branch_streamplot uses only a pseudotime vector and cell-state labels, so it can summarize the branch structure inferred by this method as a compact river-style plot. The width of each ribbon shows where a cell state is enriched along pseudotime, while the split centerlines highlight terminal endocrine fates.
fig, ax = ov.pl.branch_streamplot(
adata,
group_key='clusters',
pseudotime_key='dpt_pseudotime',
show=False,
)
plt.show()
Use dynamic_features / dynamic_trends with DPT pseudotime#
ov.single.dynamic_features can fit marker trends along dpt_pseudotime. We first draw a global marker trend panel with points colored by clusters, then compare late Alpha and Beta programs in a branch-aware panel around the endocrine progenitor stage.
import numpy as np
dpt_trend_genes = ['Sox9', 'Neurog3', 'Fev', 'Gcg', 'Arx', 'Pax4', 'Ins2', 'Pdx1', 'Sst', 'Hhex']
diffusion_dyn = ov.single.dynamic_features(
adata,
genes=dpt_trend_genes,
pseudotime='dpt_pseudotime',
use_raw=adata.raw is not None,
distribution='normal',
link='identity',
n_splines=8,
store_raw=True,
raw_obs_keys=['clusters'],
)
🔍 Dynamic feature analysis:
Views: 1 | Features: 10
Pseudotime: dpt_pseudotime
Stored raw obs keys: ['clusters']
Expression source: adata.raw
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 10/10
✓ Fitted rows: 2000
✓ Raw observations stored: 36960
Single-line global trends#

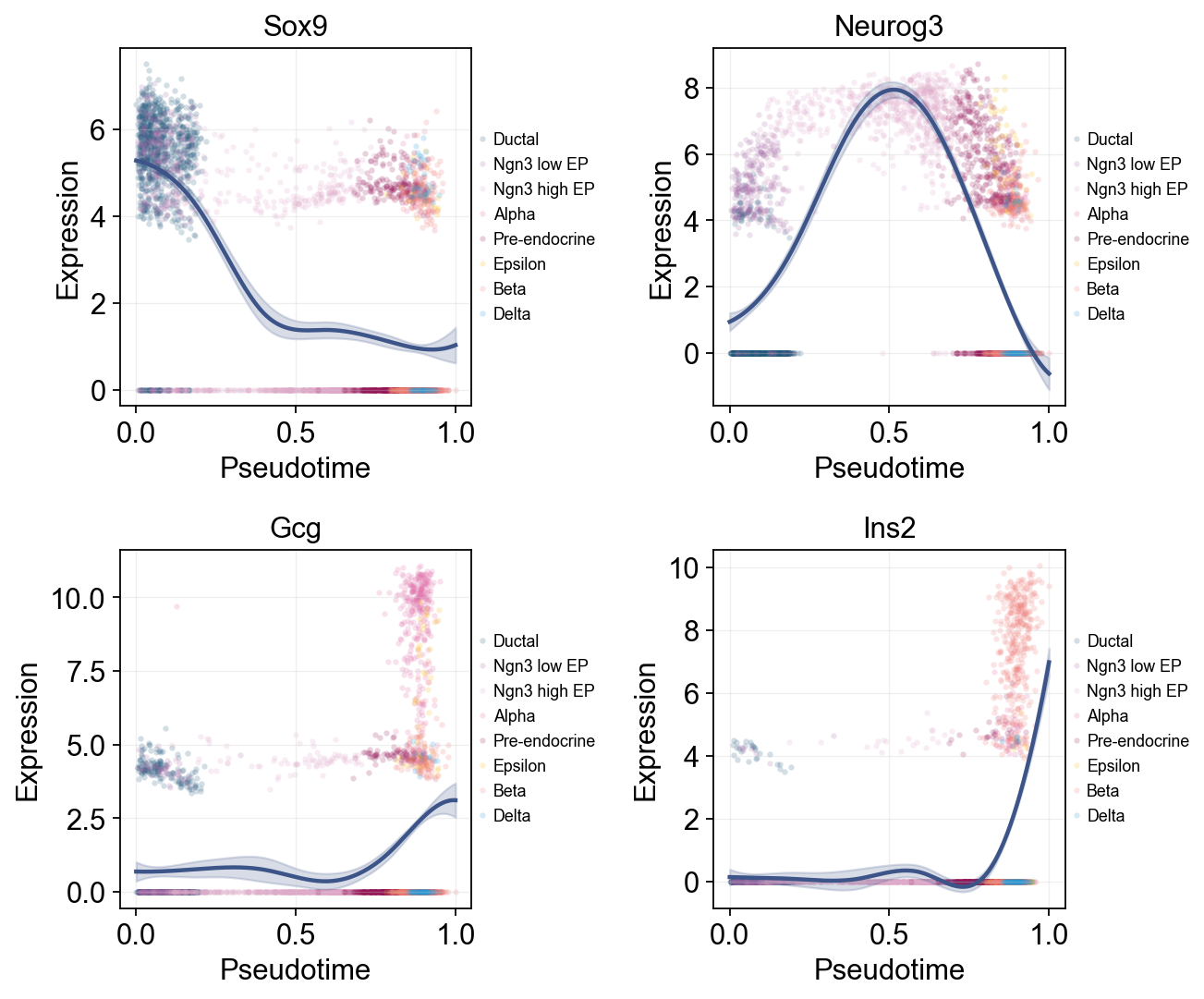

This view fits one global curve per gene and colors the raw cells by annotation. It is useful for separating the overall pseudotime trend from the cell-state composition that appears around that trend.
ov.pl.dynamic_trends(
diffusion_dyn,
genes=['Sox9', 'Neurog3', 'Gcg', 'Ins2'],
add_point=True,
point_color_by='clusters',
figsize=(5, 3.5),
ncols=2,
legend_loc='right margin',
legend_fontsize=8,
)
plt.show()
🔍 Dynamic trend plotting:
Features: 4 | Groups: 1
compare_features=False | compare_groups=False
✅ Dynamic trend plotting completed!
Multi-marker trend comparison#

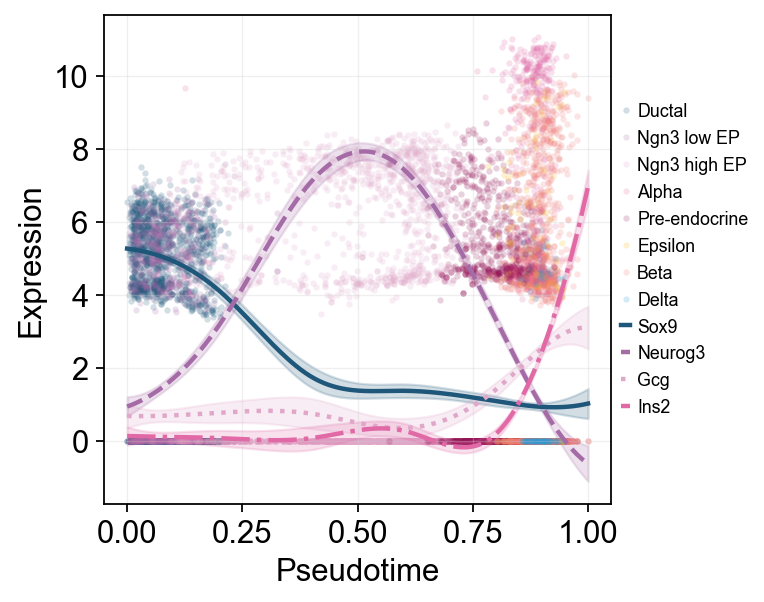

Here multiple marker curves are overlaid so their activation timing can be compared directly along the same pseudotime axis.
ov.pl.dynamic_trends(
diffusion_dyn,
genes=['Sox9', 'Neurog3', 'Gcg', 'Ins2'],
compare_features=True,
add_point=True,
point_color_by='clusters',
line_style_by='features',
figsize=(6, 4),
linewidth=2,
legend_loc='right margin',
legend_fontsize=8,
)
plt.show()
🔍 Dynamic trend plotting:
Features: 4 | Groups: 1
compare_features=True | compare_groups=False
✅ Dynamic trend plotting completed!

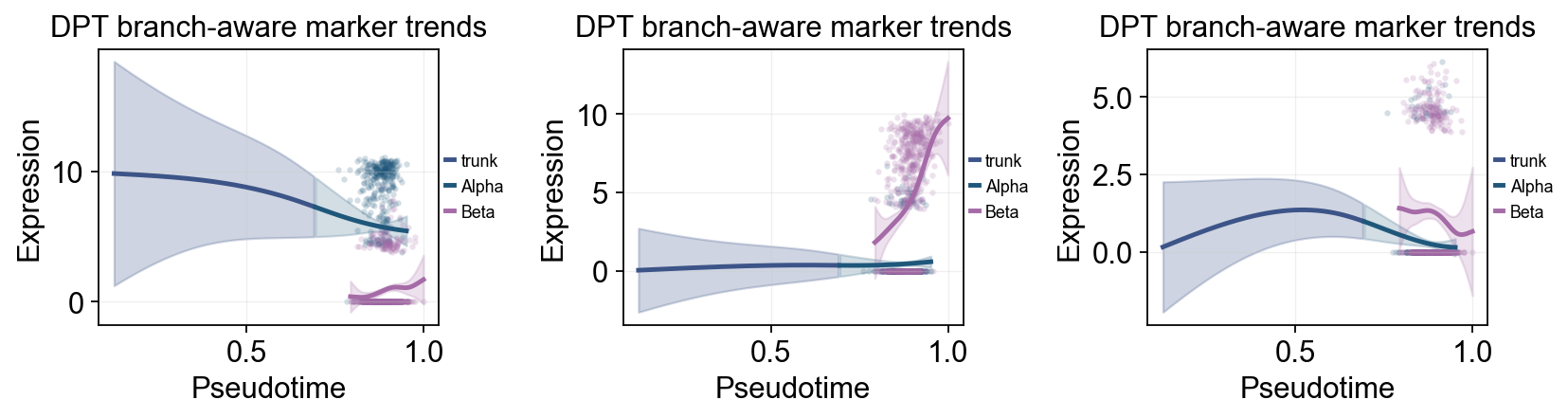

branch_clusters = ['Alpha', 'Beta']
split_mask = adata.obs['clusters'].astype(str).isin(['Ngn3 high EP', 'Pre-endocrine'])
diffusion_branch_dyn = ov.single.dynamic_features(
adata,
genes=['Gcg', 'Ins2', 'Pax4', 'Sox9'],
pseudotime='dpt_pseudotime',
groupby='clusters',
groups=branch_clusters,
use_raw=adata.raw is not None,
distribution='normal',
link='identity',
n_splines=8,
store_raw=True,
)
split_time = float(np.nanmedian(adata.obs.loc[split_mask, 'dpt_pseudotime'])) if split_mask.any() else float(np.nanmedian(adata.obs['dpt_pseudotime']))
🔍 Dynamic feature analysis:
Views: 2 | Features: 4
Pseudotime: dpt_pseudotime
Grouping: clusters
Expression source: adata.raw
GAM: normal-identity | splines=8
✅ Dynamic feature analysis completed!
✓ Successful fits: 8/8
✓ Fitted rows: 1600
✓ Raw observations stored: 4288
ov.pl.dynamic_trends(
diffusion_branch_dyn,
genes=['Gcg', 'Ins2', 'Pax4'],
compare_groups=True,
split_time=split_time,
shared_trunk=True,
add_point=True,
point_color_by='group',
figsize=(4.2, 3),
ncols=3,
linewidth=2.2,
legend_loc='right margin',
legend_fontsize=8,
title='DPT branch-aware marker trends',
)
plt.show()
🔍 Dynamic trend plotting:
Features: 3 | Groups: 2
compare_features=False | compare_groups=True
✅ Dynamic trend plotting completed!

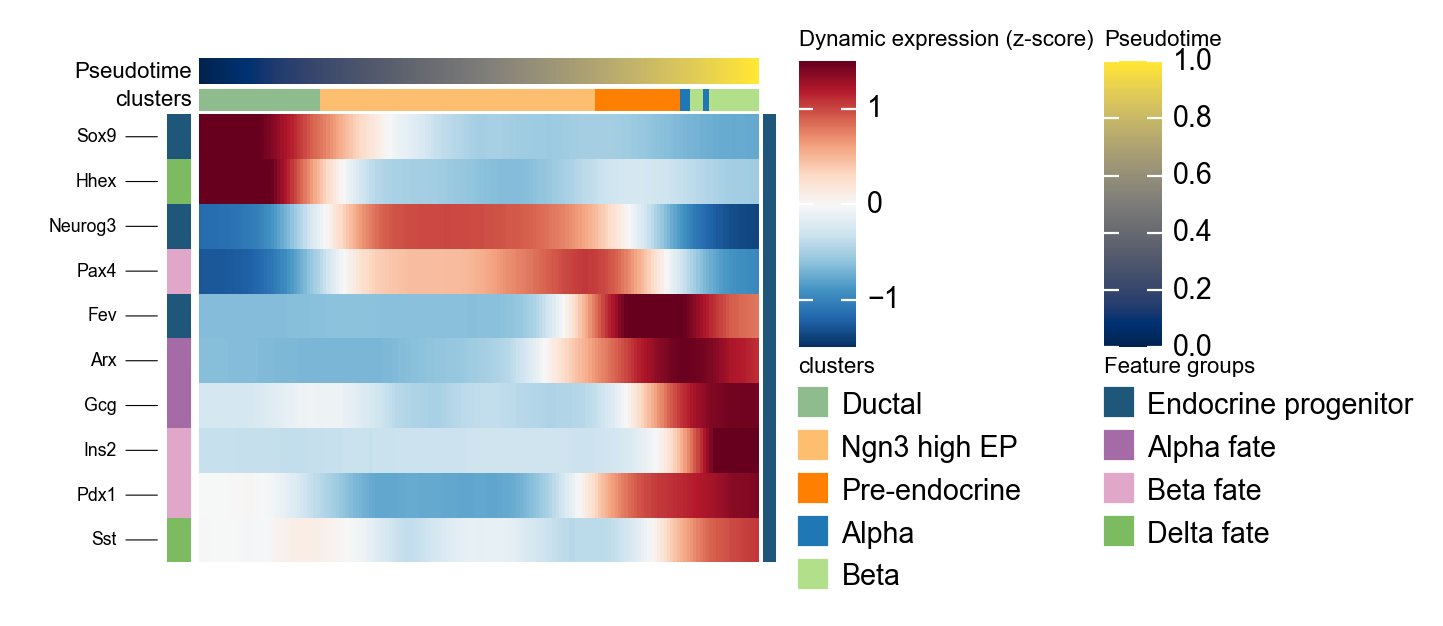

Summarize DPT marker programs with dynamic_heatmap#
ov.pl.dynamic_heatmap summarizes many genes in one pseudotime-ordered panel. Here it checks whether progenitor and endocrine fate markers activate in the same order suggested by DPT pseudotime and the stream plot.
dpt_marker = {
'Endocrine progenitor': ['Sox9', 'Neurog3', 'Fev'],
'Alpha fate': ['Gcg', 'Arx'],
'Beta fate': ['Pax4', 'Ins2', 'Pdx1'],
'Delta fate': ['Sst', 'Hhex'],
}
g = ov.pl.dynamic_heatmap(
adata,
var_names=dpt_marker,
pseudotime='dpt_pseudotime',
use_raw=adata.raw is not None,
use_cell_columns=False,
cell_annotation='clusters',
cell_bins=180,
smooth_window=17,
fitted_window=31,
figsize=(5, 4),
standard_scale='var',
cmap='RdBu_r',
use_fitted=True,
border=False,
show=False,
)
🔍 Dynamic heatmap:
Candidate features: 10
Pseudotime: dpt_pseudotime
Cell annotation: clusters
use_fitted=True | cell_bins=180 | cmap=RdBu_r
✅ Dynamic heatmap completed!
✓ Matrix shape: 10 features × 171 columns
